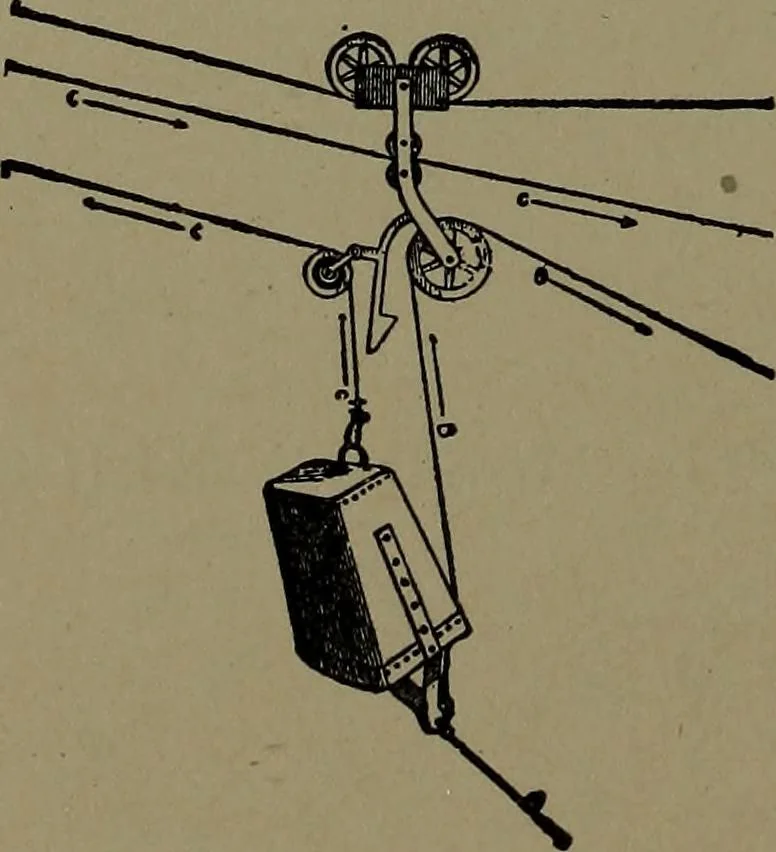

1470. SWING-BOOM CRANE, with atravelling truck and trolley lift. Boom re-volving on radial rollers. … 1471. CABLE HOIST AND CON-VEYER, for excavating canals andtrenches. The upper line is the cable,middle line the traveller, and lower linesoperate the dumping device. CONSTRUCTION AND DEVICES. 355 1472. CANTILEVER HOISTING AND CONVEYING MA-CHINE, Lancaster system. The trussed booms and standing…
