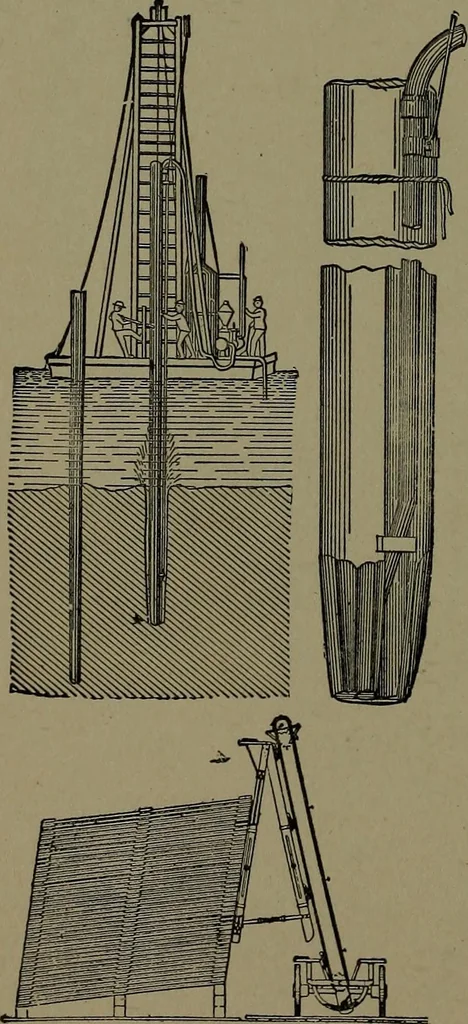

;this process can beeasily adjusted. The blade is raised after having cut throughthe log, and is held in the guiding slot by a screw, so as not tointerfere with shifting the machine. 1510/?. HYDRAULIC PILEDRIVER.—A pile with a grooveon its side in which a pipe is laidto the bottom of the pile,… … iSioi. LUMBER ST ACKER.—A machine has been invented con-sisting of a convCyor belt whichlifts the planks one by one. Themachine comprises a skid formedof a pair of arms, one of whichbears against the stack alreadypiled, while the other lies adjacentto the conveyor belt and forms aguide against…
