Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 38

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 38

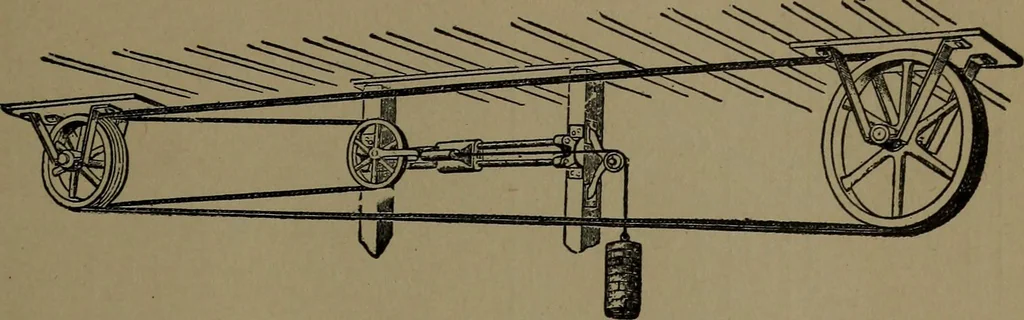

59. TRANSMISSION BY ROPE to a shaft atright angles to the driving-shaft. The guide sheavesgive direction to the rope over the curve face of thedriven pulley, the rope slipping towards the centreof the driven pulley. 60. TRANSMISSION BY ROPE toa portable drill or swing saw. D, driving sheave. A,… … 61. HORIZONTAL ROPE TRANSMISSION, with tensionslide and weight.
