Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 371

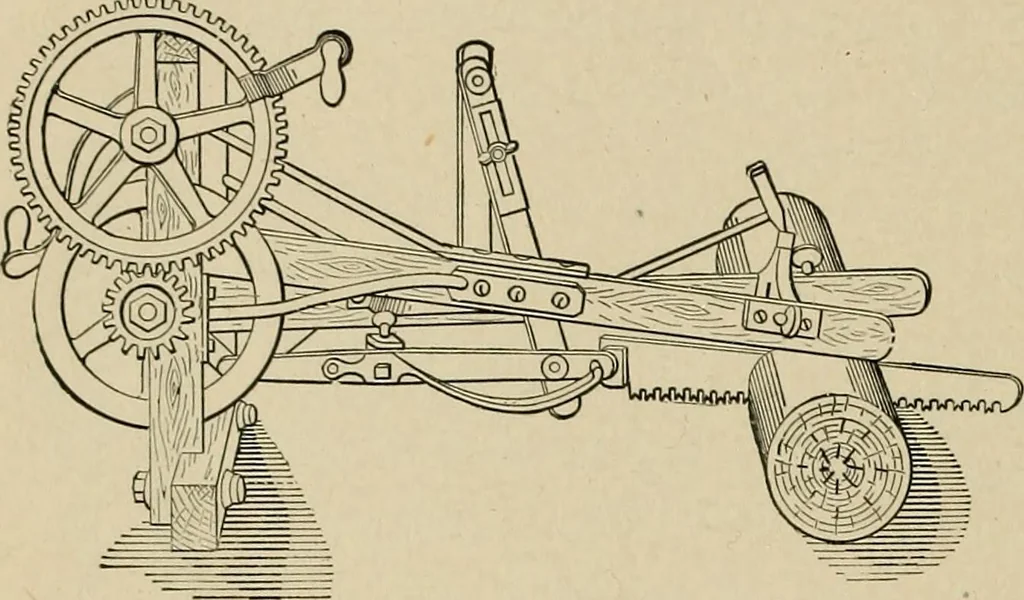

62 CONSTRUCTION AND DKVICES. 15100. LOG SAWING MACHINE.—The lever being prop-erly adjusted, and the screw and dogs being placed in position,, the saw is rapidlyreciprocated b yturning the drivingshaft. A spring at-tached to the buttof the saw and cen-ter of the pitmanpresses the teethdown upon the…
Mechanical movements
