Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 390

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 390

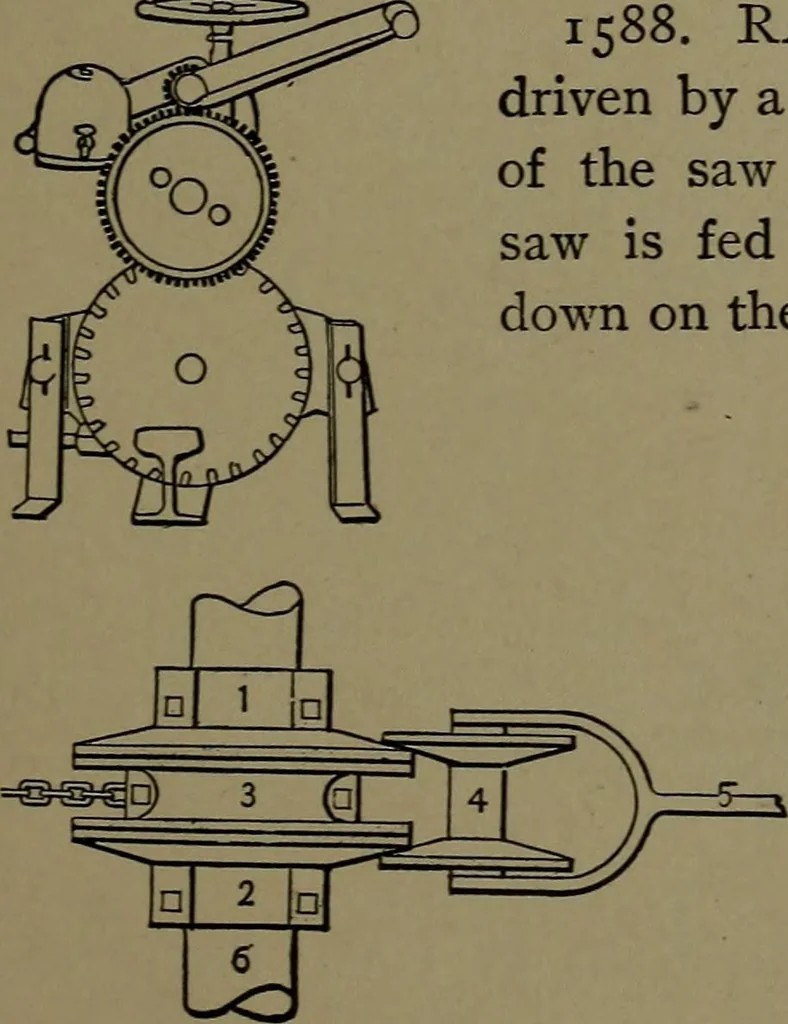

1586. BALL-BEARING SCREW JACK.—The balls run in grooves between the bearingplates. 1587. HYDRAULIC TRANSFERJACK.—For lifting cars or transferringover temporary rails. The extension ofthe truck axles allows for adjustment toany gauge railroad. ^ … 1588. RAIL-CUTTING SAW.—The saw isdriven by a trundle pinnion meshing in the teethof the saw and geared up to the crank. Thesaw is fed by a screw moving the gear framedown on the rail. 1589. PROUTY-NOBLE AUTO-MATIC, OR SELF-WINDINGBRAKE.—The central chain spool 3runs loose on the car axle and…
