Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 392

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 392

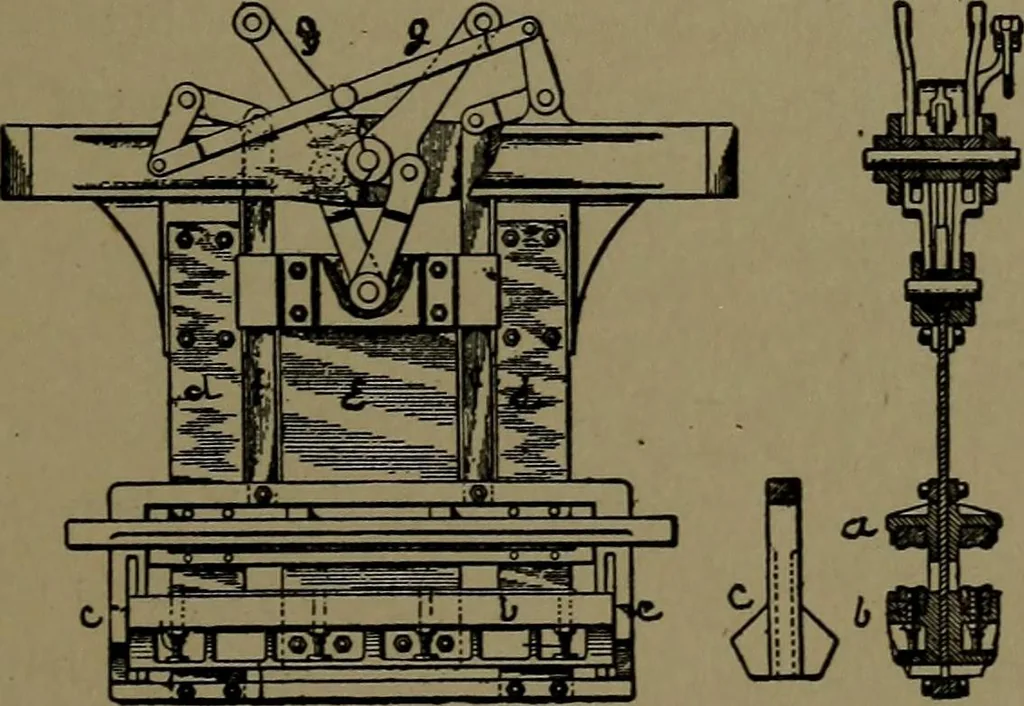

1597. CABLE RAILWAY GRIP.—Friction sheaves are drawn tightly on thecable by a vertical bar in the frame plate.Friction is increased by further tighteningthe grip wheel. 1598. Showing wheel connection withgrip. … 1599. CABLE GRIP FORSTREET RAILWAYS.—^,b^ grip jaws and blocks; <r,pull-up to throw the cable outof the jaws; d^ d, frameplates; e, grip plate connectedto b^ and operated by the bellcrank levers g, g\f,f, pull-upattached to frame and dis-engaging pieces c, c. 1600. End view of grip.
