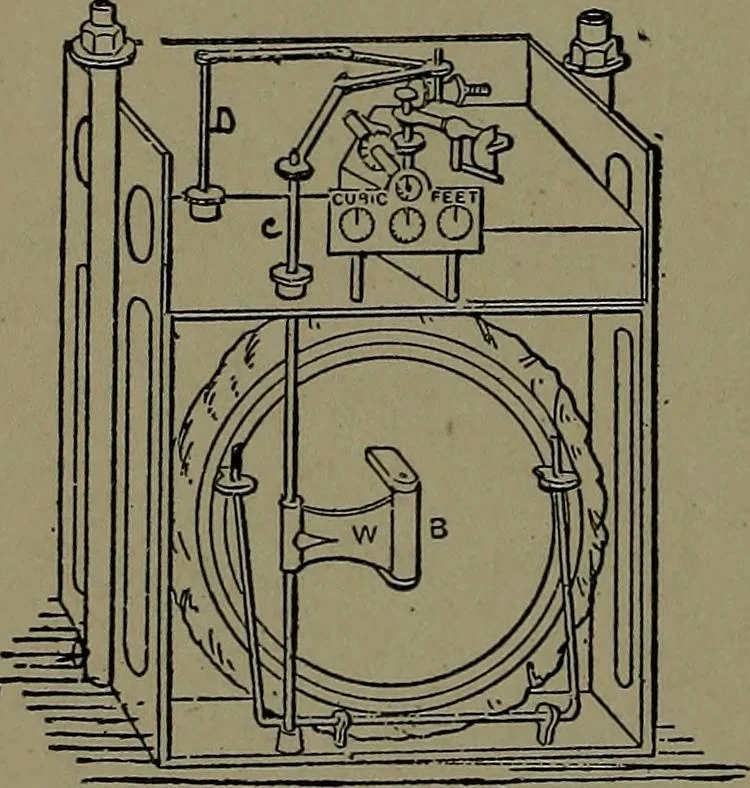

on a set of dials adapted to separate dial readings. 1620. WET GAS METER. —Gas entersthrough the hollow axis of the four compartmentsof the drum in a pipe, which turns up just abovethe water level and fills each compartment suc-cessively, and by its pressure causes the drum torevolve in the… … 1621. DRY GAS METER and regis-tering train. Two vertical rock shafts, C,D, are vibrated alternately by the bellowsB, through the connecting arm W. Bythis movement the toggle arm pivoted tothe rock-shaft cranks is made to swingthe arm of the vertical screw-gear shaft,and to set the dial train in…
