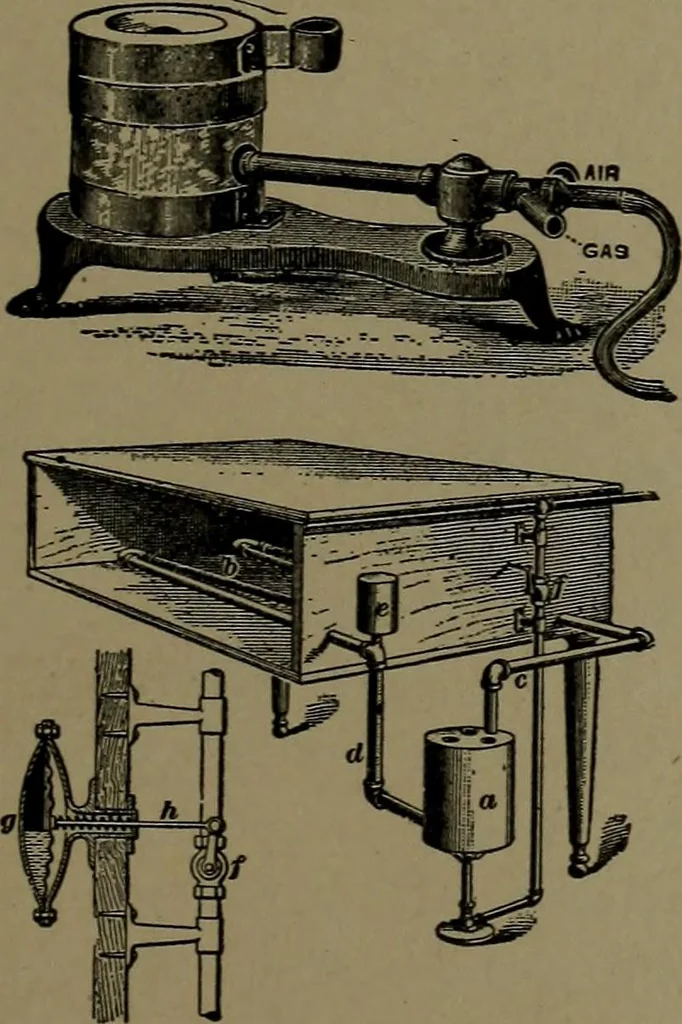

and air through the tube tothe furnace. 1627. GAS-HEATED INCUBATOR.-- A hot-water tank heated by a smallBunsen burner or lamp, b^ c, d^ Circulat-ing pipes; f^ regulating cock; ^, ex-pansion cup. 1628. Thermostat regulator. ^, Ther-mostat, consisting of a corrugated metaldiaphragm between two cupped… … 392 MISCELLANEOUS DEVICES. 1629. ACETYLENE GAS GENERATOR, Troubetzkoymodel. Has a water flow governed by the rise in the holder. J, Bal-anced gas holder; G,water seal tank; B, Bjgenerators, two or four;A, small water tank; a^pipe to convey water togenerators; ^, govern-ing valve, operated bythe…
