Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 400

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 400

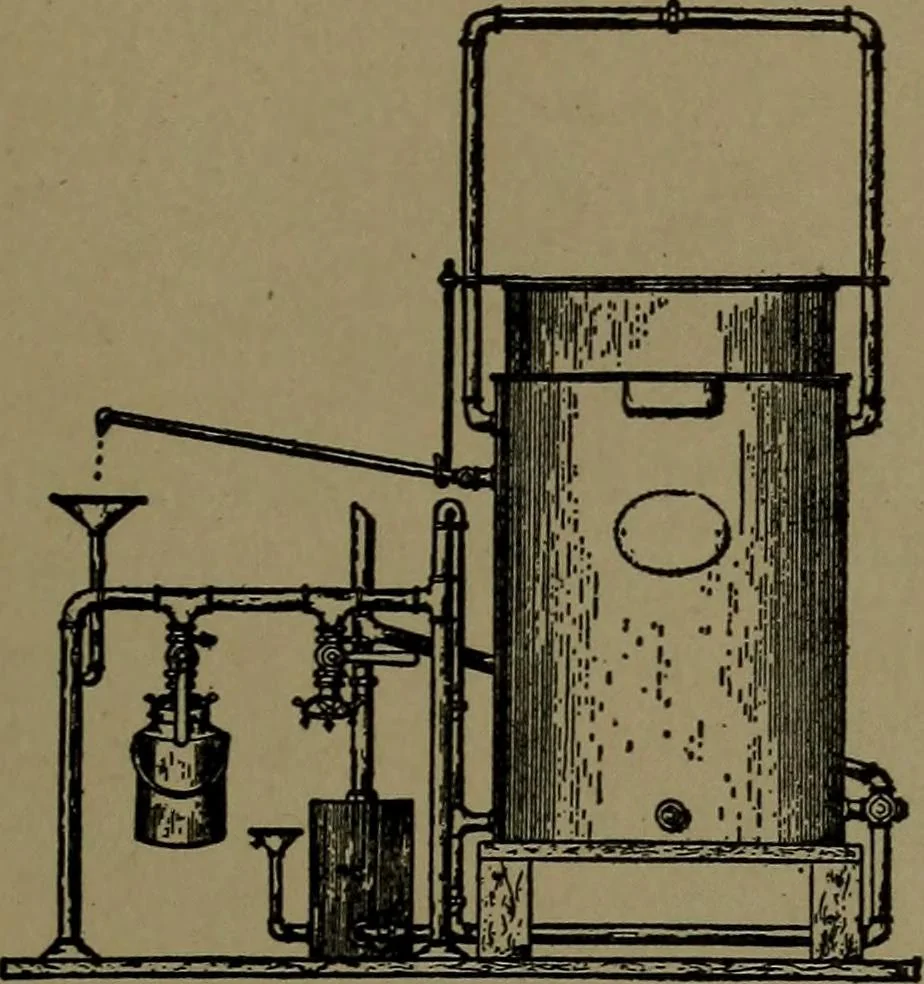

1632. AUTOMATIC GASOLINE ANDMANTLE LAMP.—The gasoline flowsfrom the reservoir to the D-shaped vapor-izer, regulated by a needle valve. Thevaporizer over the lamp chimney generatesa vapor pressure. The gas vapor is jettedinto the opposite tube, mixing with air andproducing an air vapor gas, which… … 1634. ACETYLENE GENER-ATOR AND GAS HOLDER.—The carbide is charged into thesmall vessel suspended from thecross pipe, with a stopcock above.A connection for a second carbidevessel is also seen. Water fromthe holder runs through a jointedpipe and drips into the sealed fun-nel. The water nozzle is…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
