Mechanics of the household; a course of study devoted to domestic machinery and household mechanical appliances (1918)
Keene, E. S. (Edward Spencer), b. 1864 · New York, McGraw-Hill book company, inc.; · leaf 311

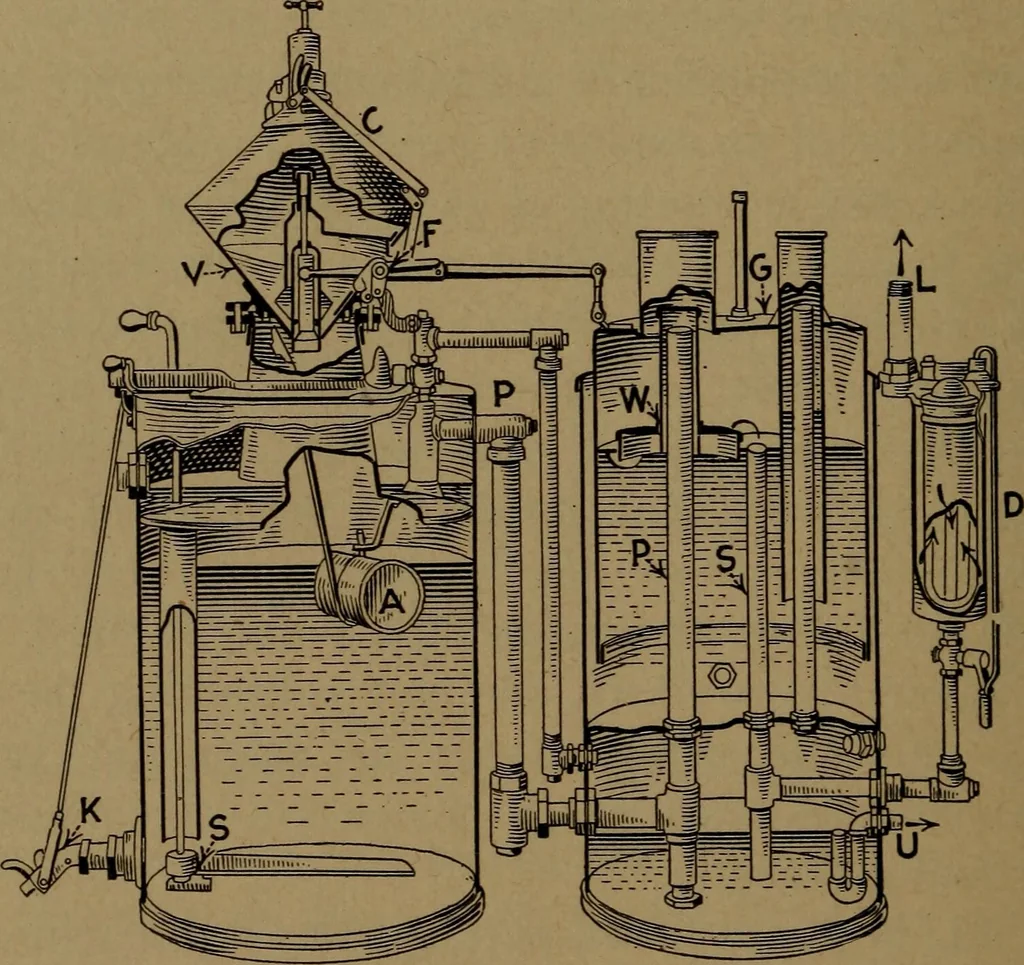

nd as the bell israised by the accumulating gas the valve V is closed. The gas as it enters the gasometer passes through a hollowdevice W, that looks like an inverted T, the lower edge of which istooth-shaped and extends below the surface of the water. Thegas, in passing this irregular surface, is… … (a) W Fig. 211.—Sectional view of the Colt acetylene-gas machine. The gas escapes from the bell through the pipe S to the filter D,where any dust that may have escaped the washing process isremoved by a felt filter. It finally leaves the machine by thepipe L, at which point it enters the system…
