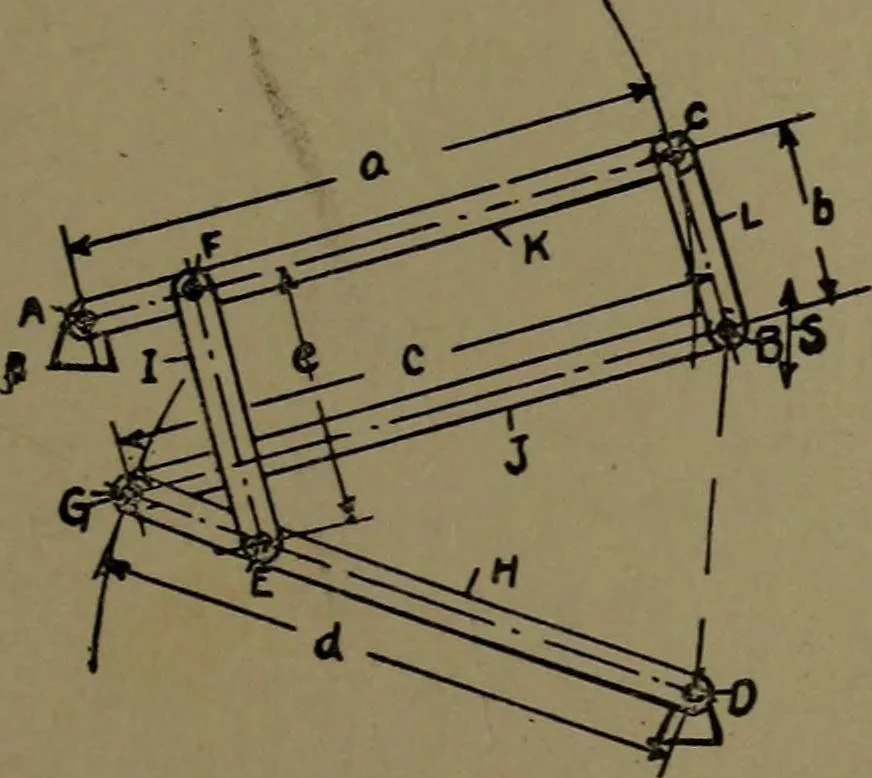

WITH TW^OLEVERS AND THREE LINKS.—Levers K and H are con-nected to links /, /, and L. H hpivoted at D and swings at a radiusequal to d. / is a link connectedto H 2X G and to L at 5. L is alink connected to / at B and K at c.K IS 2i link pivoted at A and con-nected to L at C, swinging at aradius… … at ECE- right angle^. 398 STRAIGHT LINE MOVEMENTS. LINE MOTION WITH TWOLEVERS AND ONE LINK.—Levers X and Z are connected byi^/^link Y. X is a lever pivoted at Eand connected to F at ^. Z is alever pivoted at D and connected toy at C. F is a link connected toX 2it A and to Z at C, the end B moving…
