The American house-carpenter; a treatise on the art of building, and the strength of materials (1867)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 378

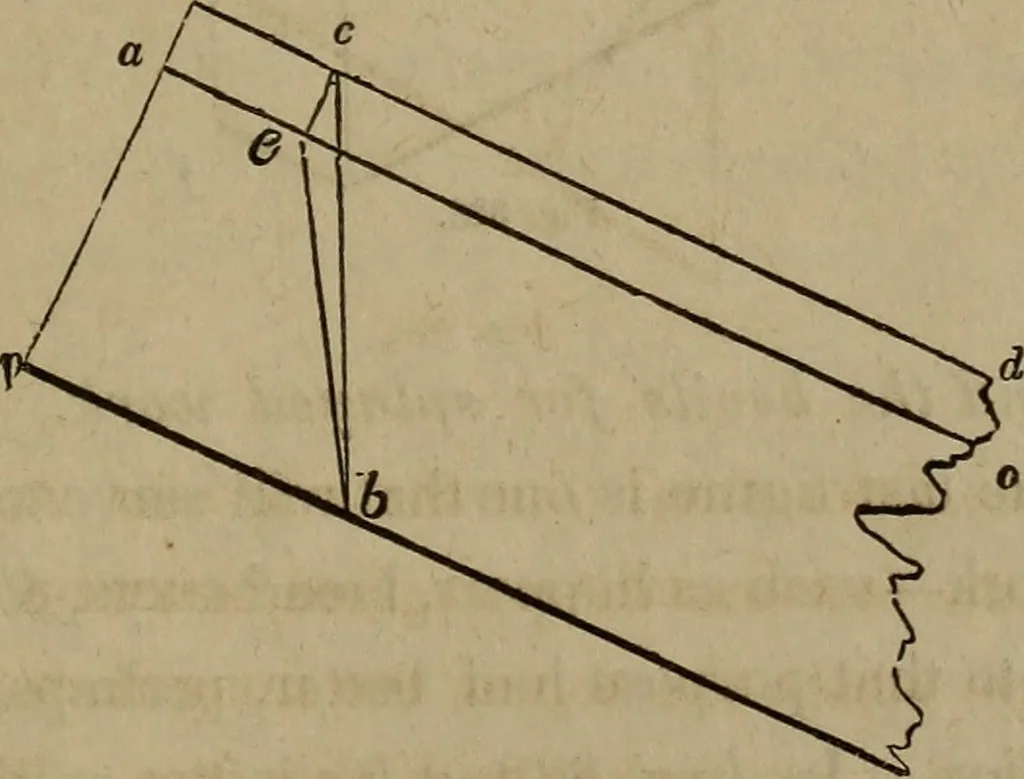

, the thickness necessaryto get out the twist may be ascertained according to Art. 474—taking the vertical distance across the falling-mould at the joints,and placing it down from the two outside heights in Fig. 315 or316. After bevilling the plank, the moulds are applied as at Art.476—applying the… … Fig. 822. 483.—To apply the moulds without bevilling the plank.Make w p, {Fig. 322,) equal to w p aX Fig. 320, and the angle,bed, equal to 6 j I in Fig. 315 ; make p a equal to the thick-ness of the plank, as w a ir. Fig. 320, and from a draw a 0. pa-rallel low d; from c, draw c e, at right angles…
