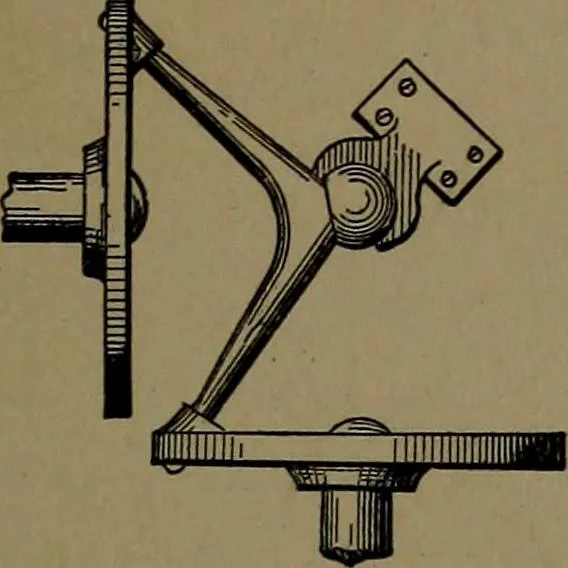

LINK TRANSMISSION ofshaft motion, or conic link work. Theprinciple consists in making all linesof motion meet at a common center O.Cranks of equal length and also dis-tances of rotating bearings of equallengths and equal distances from O.Fixed shaft bearings also at equal dis-tances from O. 138/.…
