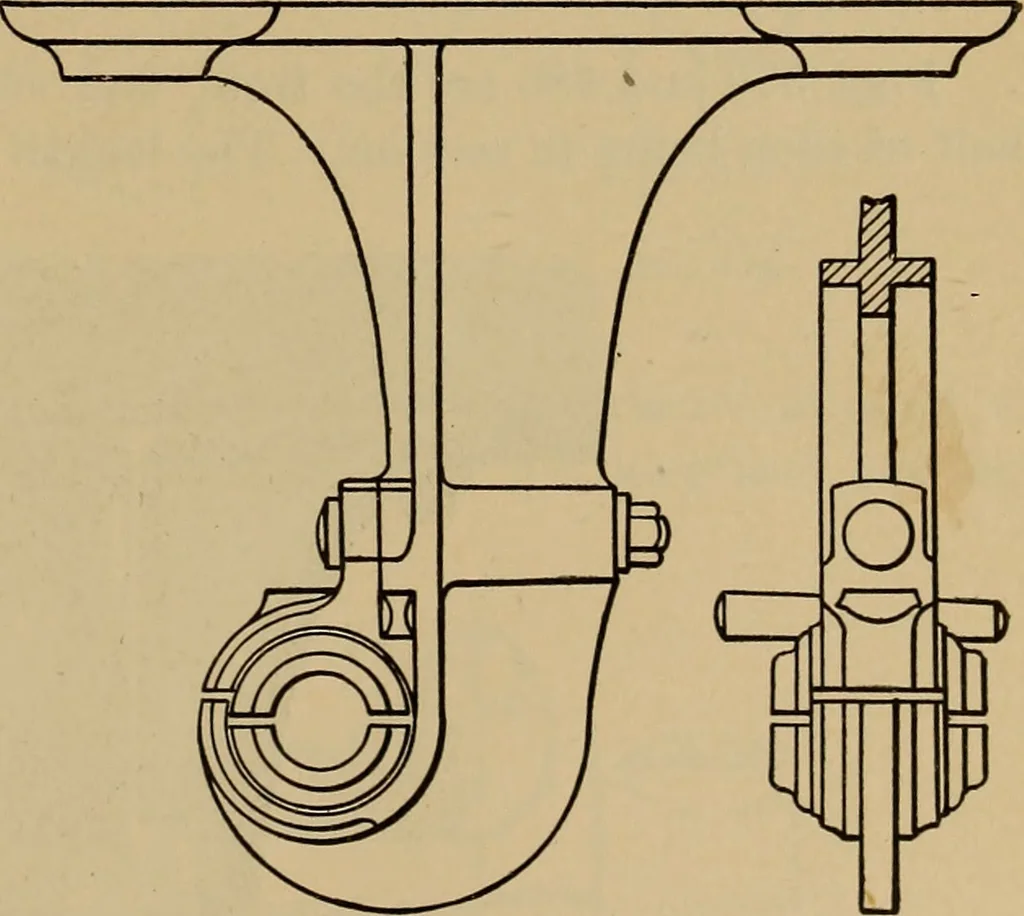

his fastened to the beam, E is the yoke, and B the stem of the yoke, cut with a thread so as to admit of a verticaladjustment; the box D of the shaft C is supported by two pointed set-screwspassing through the jaws of the yoke ; this affords a very flexible bearing, anda chance for lateral… … Fig. 569. Fig. 570. 266 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. couplings, which are in use in their own shops and have been extensively copiedby others. Some of the distinctive forms are further illustrated.
