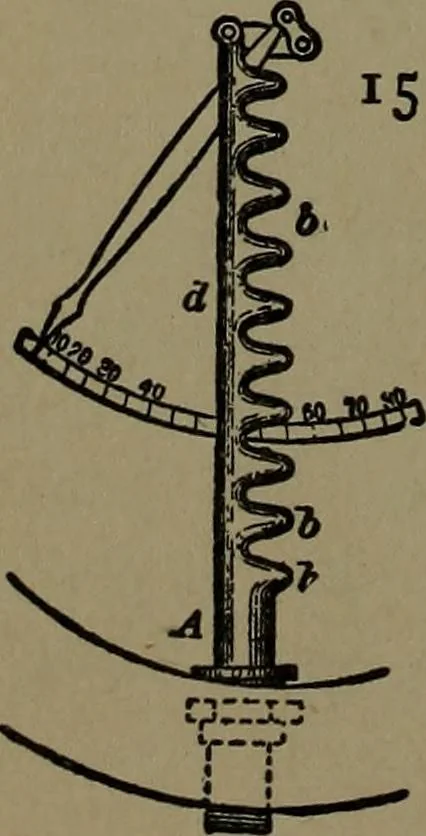

151. CORRUGATED TUBE-PRESSURE GAUGE.—The pressure within the tube expands it on the cor-rugated side and through the link connections withthe index hand moves the hand. MEASUREMENT OF POWER. 51
