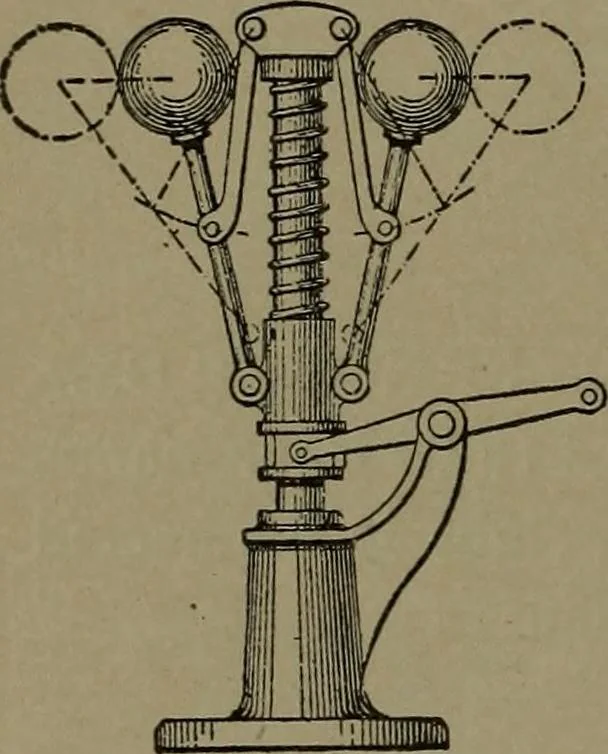

298. CENTRIFUGAL BALL GOVERNOR.— The balls, with arms pivoted to the revolvingspindle, through their connections raise or lower the,-. grooved sleeve on the lower part of the spindle.\J The yoke of the valve lever rests in the groove andthus controls the valve gear by the varying speed ofthe… … 299. INVERTED GOVERNOR.—The cen-trifugal force of the balls is resisted by a springaround the spindle. The extension of the ballslifts the lever spool through the toggle-jointmovement.
Mechanical movements
