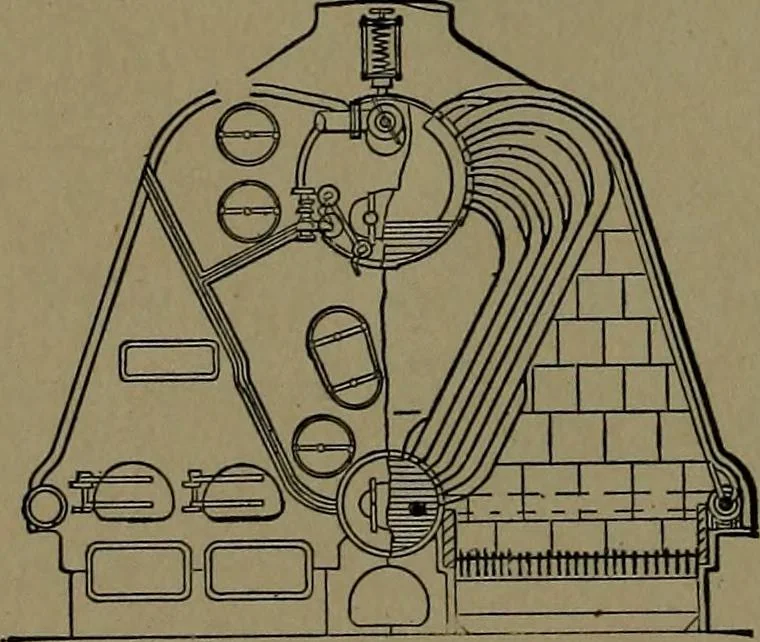

187. HERRESHOFF BOILER.— A horizontal volute coil at thetop acts as a heater. The innercoil is the evaporator; the outercoil is the superheater. A separa-tor entraps the water that may becarried over from the evaporatingcoil. ^w^ … 188. THORNYCROFT BOILER.—A large steel drum above and a waterdrum below, connected with a large num-ber of bent tubes. The water return isthrough a large tube at the rear end ofthe boiler.
