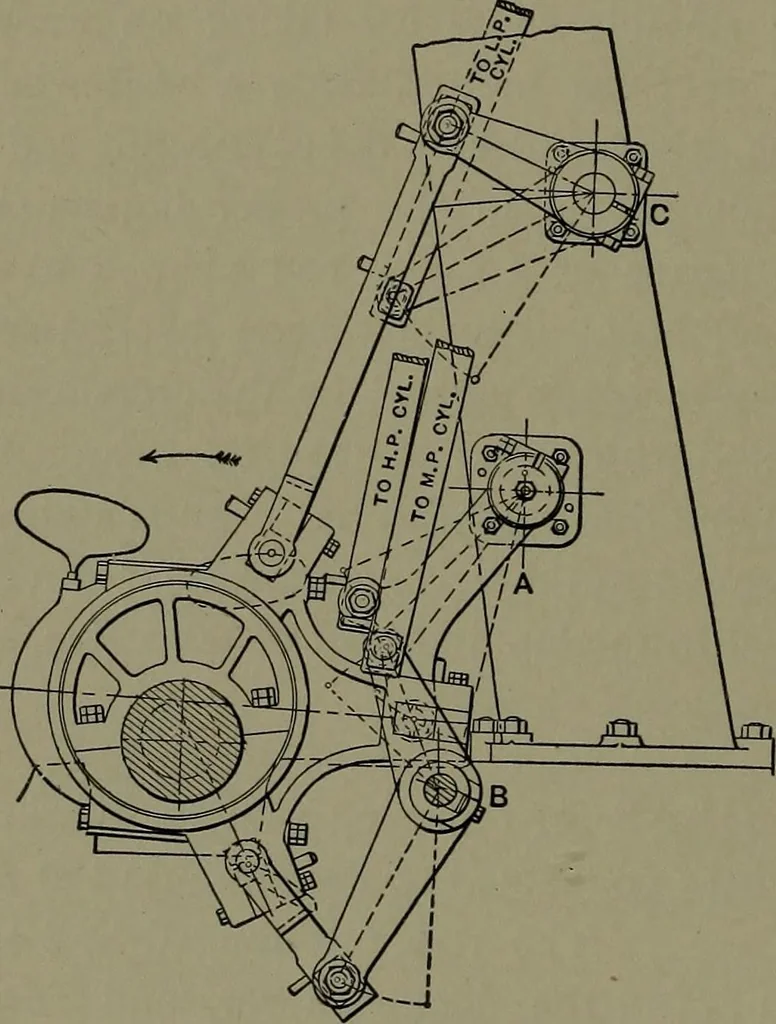

94 STEAM POWER APPLIANCES. movement of the reverse lever, buffer springs /, / are provided, whichgradually bring the moving parts to rest. In both gears shown, suitable stops in the valve chest prevent thevalve from being moved beyond the positions required for a full open-ing of the ports. 206.… … 207. TRIPLE EXPAN-SION VALVE GEAR withsingle eccentric. A, eccentricstrap stay arm, which also oper-ates the high-pressure valve rod.B, bell-crank rock shaft thatoperates the medium - pressurevalve rod, linked to eccentricarm. C, rocker arm, shaft, andbell-crank connection by link tothe eccentric…
