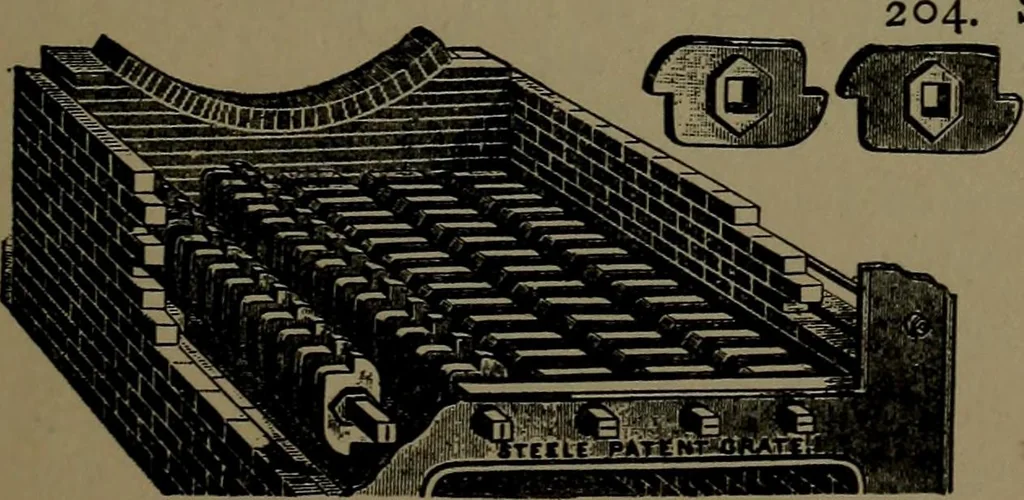

203. SHAKING AND TIP-PING FURNACE GRATE, Tupper model. Each sectionrocks on trunnions by a handlever and connecting bar. … SHAKING GRATE for a boiler furnace.— Theflanges are strung uponsquare bars to form eachgrate section, which areshaken or dumped by akey wrench at the front. 64 STEAM POWER.
