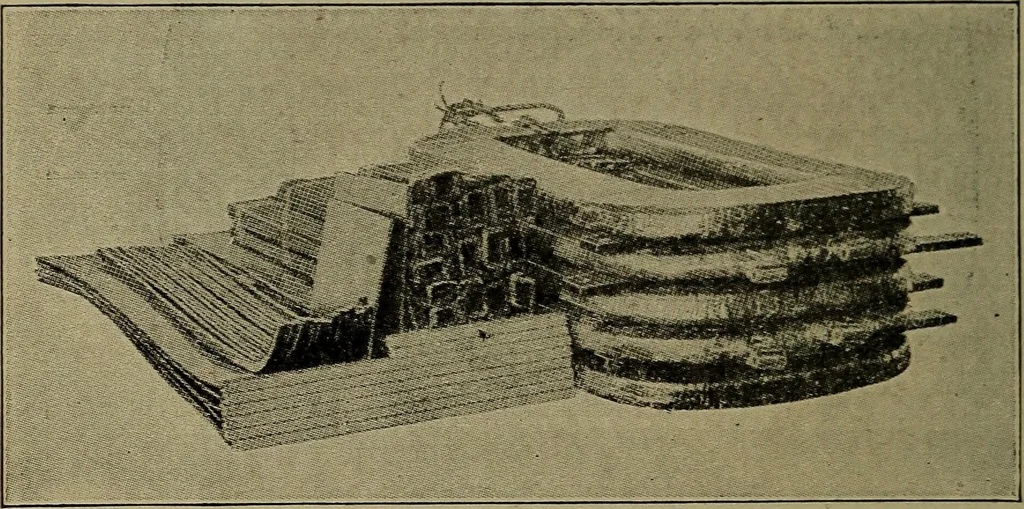

sethere are 8 turns on primary and 3 turns on secondary.The power in the secondary circuit is practically the same(minus the losses) as is given out by the alternator, hencethe primary current is low and wire is small. The sec-ondary current is large so wire is large. Since one kilowatt can be a… … Fig. 187. Coils, Air Ducts and Separators for Transformer. This transformer (Fig. 185) lowers the voltage and iscalled a step down transformer. When the secondary is connected to the alternator, thetransformer raises the voltage and is called a step uptransformer. The coils of a transformer must be…
