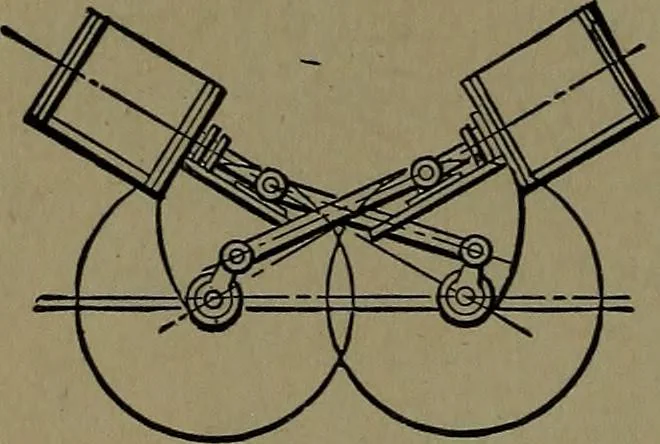

22 1. VERTICAL ENGINE, WITHBELL-CRANK LEVER, for stem- wheel boat. 222. INCLINED PADDLE-WHEELENGINE, with upright crank-con-nected beam for driving air pump. … 223. DIAGONAL TWIN-SCREW EN-GINE, arranged so that the connecting rodscross each other, thus economizing space.
