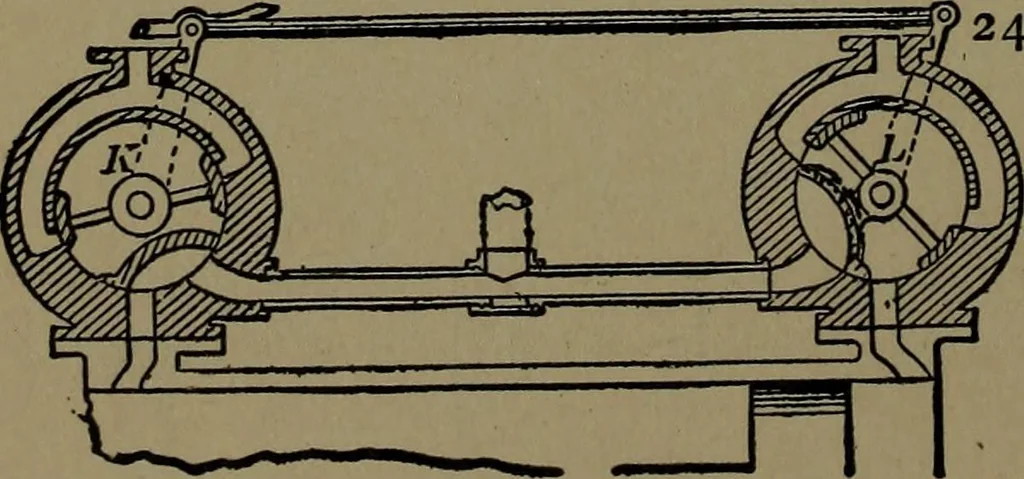

243. GRIDIRON SLIDE VALVE, for large port area with small motion of thevalve. … 244. ROTARY VALVES.—The valves K and L arethree-winged cylinders, andare nearly balanced by thedouble inlet ports of thevalve chamber. STEAM POWER. 73
