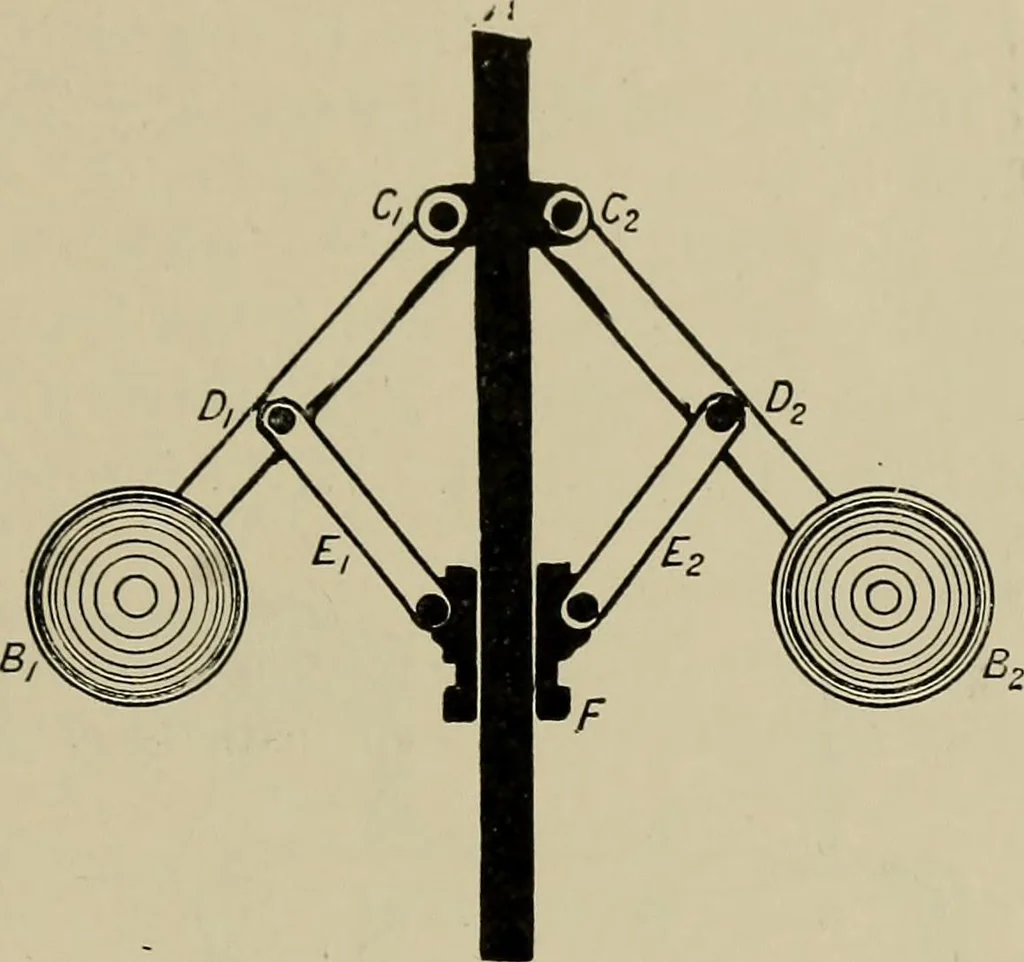

most usual type of governor has twoballs fastened by arms to the shaft and rotating with it. Suchgovernors are shown in Eigs. 45 and 46. In the former figureit is arranged on a vertical shaft, and in the second on a horizon-tal one. In Fig. 45 A is the shaft; it carries on it the bracketCxCa, and… … Fig. 45.—Vertical Governor. sliding collar F. To this collar can be attached a lever or a system of levers to act on the engine. The way in which they act will be discussed later. In Fig. 46 the same sort of action occurs. As the balls Bx and B2 fly out they carry with them the links Hi and H2…
