Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 93

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 93

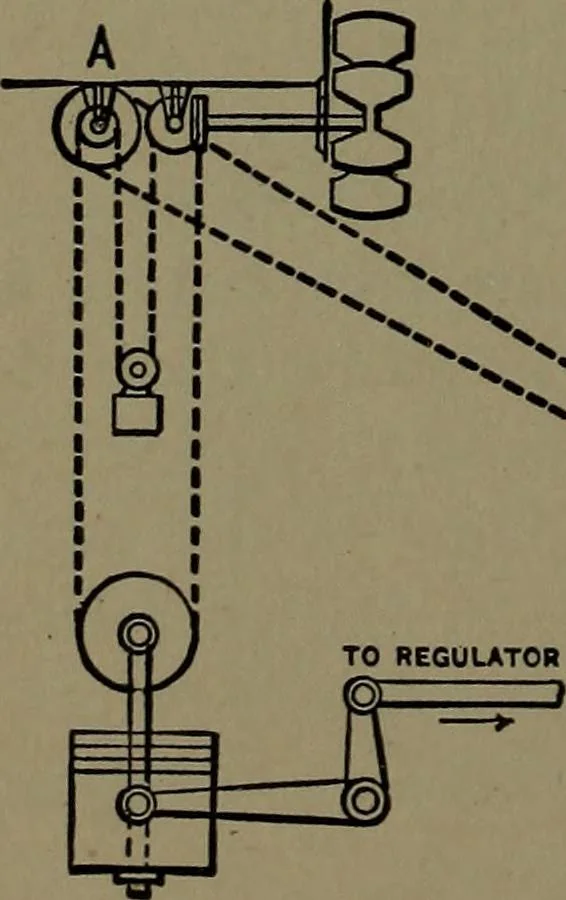

307. DIFFERENTIAL GOVERNOR.— The larger pulley, A, is driven by a belt fromthe motive power, winding up the larger weightwhich is offset by the revolution of the smallei^^^.^v^ pulley and the fan wheel, which is regulated bythe difference in the weights which balancesthe frictional resistance of…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
