Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 95

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 95

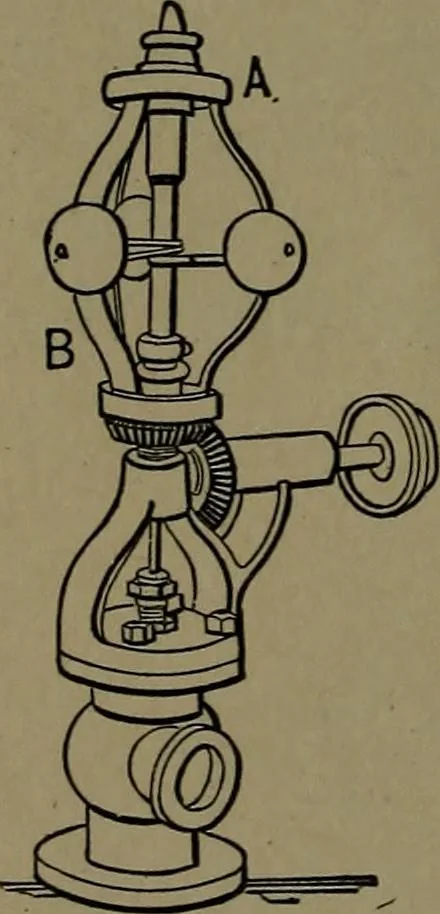

314. PRINCIPLE OF THE PICKERINGGOVERNOR.—The centrifugal force of the ballsrevolving with the central spindle throws out thesprings to which they are attached, shortens theirlength on the spindle, and lifts the grooved collarthat carries the lever for regulating the valve motion. … 315. PICKERING GOVERNOR.—The revolving balls are held by springs, the exten-sion of which draws the cap. A, downward andwith it the central valve rod, with direct con-nection to the balanced throttle valve.
