Mechanics and heat; a text book for collleges and technical schools (1916)
Franklin, William S. (William Suddards), 1863-1930, Macnutt, Barry, 1878-1936, [from old catalog] joint author · New York, The Macmillan company; London, Macmillan & co., ltd. · leaf 115

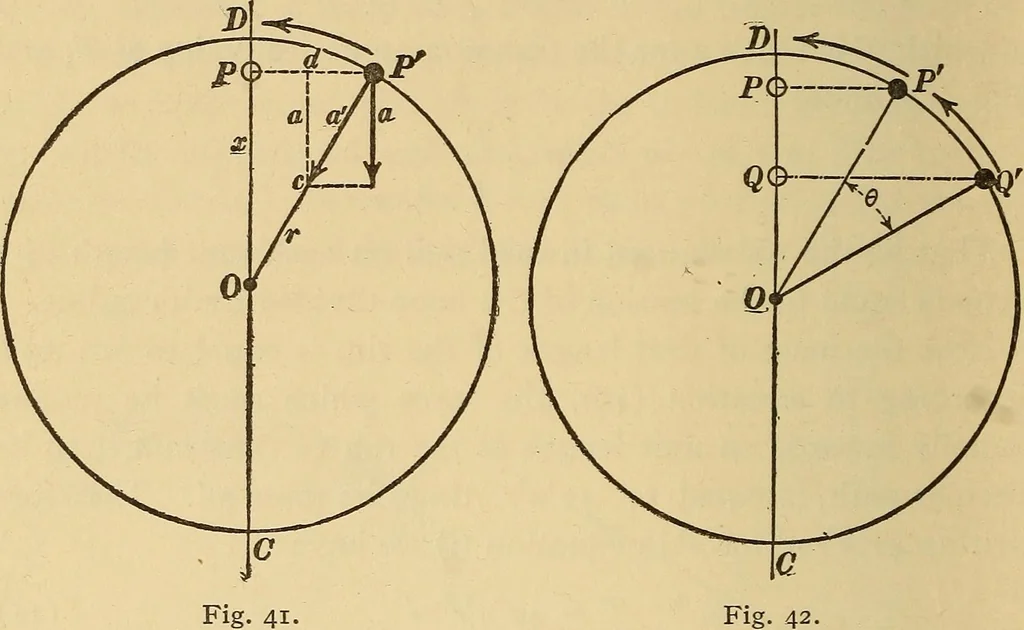

OTION. 41. Definition of harmonic motion. Utility of the idea. Simple harmonic motion is the projection on a fixed straight lineof uniform motion in a circle. Consider a point P, Fig. 41,moving uniformly around a circle of radius r at a speed of n IOO ELEMENTS OF MECHANICS. revolutions per second,… … Fig. 42. Frequency. The number of vibrations, or cycles, per second iscalled the frequency oi the oscillations of the point P; this is, ofcourse, equal to the number of revolutions per second of thepoint P. Period. The time required for the particle to complete onewhole vibration, or cycle, is…
Mechanics · Heat
