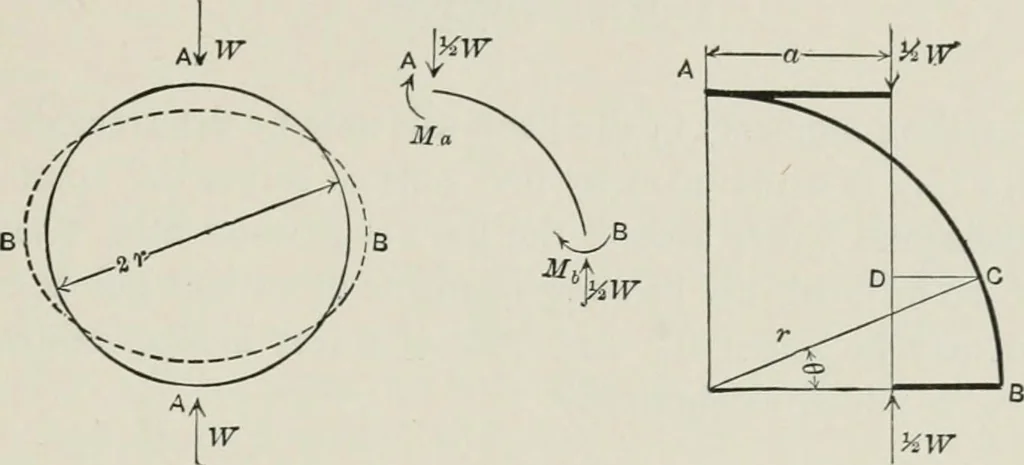

r down and becomestensile in the lower part of the structure. 208. Resistance of a Ring to a Single Load.—When a ring isacted upon by two equal and opposite forces as shown in Fig. 94,the curve becomes flatter at A and sharper at B, showing that ENVELOPES. 219 bending moments of opposite sign are… … Fig. 94 the circle and horizontal levers to be attached at A and B so thatthe forces can be moved horizontally such a distance as to causethe actual moments existing at A and B. For equiHbrium theforces, when moved, must be appUed in the same line, and themoment at any section of the ring will be…
