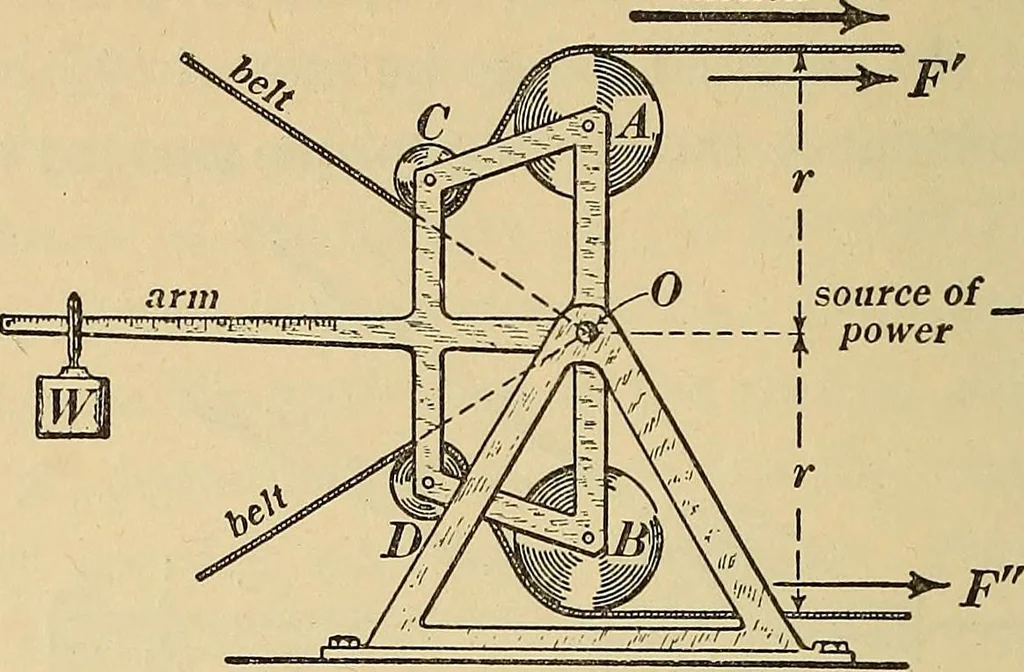

nd stretches of belt. A weightW slides along a lever arm which is fixed to the rocking frameso that the tilting action of the right hand stretches of belt maybe balanced and measured. When no power is transmitted bythe belt, the tension of the belt is the same everywhere and, underthese conditions,… … Fig. S6p. away from 0 to give a balance. This movement of the weight Wfrom its zero position is 16 inches, the mass of W is 55 pounds,the distance r is 24 inches, and the speed of the belt is 80 feet persecond. Find the power transmitted by the belt. Ans. 5.33horse-power. Note. To find the value of…
