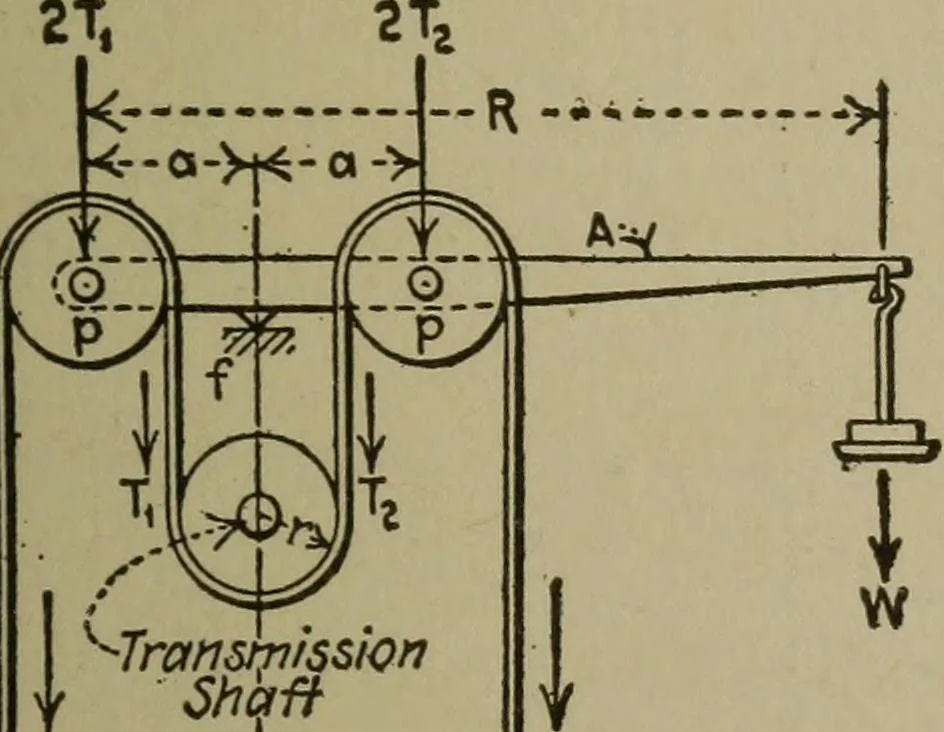

An illustration from Mechanical laboratory methods; a testing of instruments and machines in the mechanical engineering laboratory and in practice, 1918, leaf 62 — nts one. The torque of the trans- DYNAMOMETERS 41 mission shaft is equal to the effective^belt pull, T1-T2, multipHedby the radius at which it acts, r. Disregarding the friction atthe bearings of the pulleys, p and p, the reactions at thesebearings will be 2Ti and 27^2, respectively, as will be…
