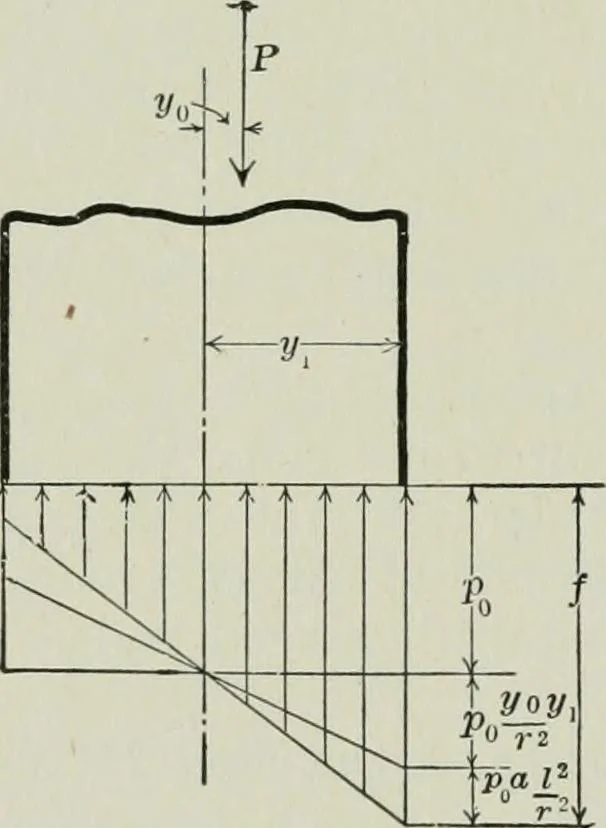

eless; for an equallylarge value of r^ ought to be found at the ends also. Henceswelled columns and struts are but little used. 135. Column Eccentrically Loaded. —When the load is applied eccen-trically to a long column, the maxi-mum unit stress found in the extremefibre on the concave side must be… … Fig. 60 From § 124, l=jy-+^) =Po + Po^From § 130, / = 5 (^i + ^^j =Po + Po^^- COLUMNS, POSTS, AND STRUTS. 149 If then the column is long and the line of action of P deviatesfrom the original axis of the column by a distance yo, the threeexpressions, po, poyoyi ^r^, and p^aP ^r- should be added,…
