Mechanics and heat; a text book for collleges and technical schools (1916)
Franklin, William S. (William Suddards), 1863-1930, Macnutt, Barry, 1878-1936, [from old catalog] joint author · New York, The Macmillan company; London, Macmillan & co., ltd. · leaf 224

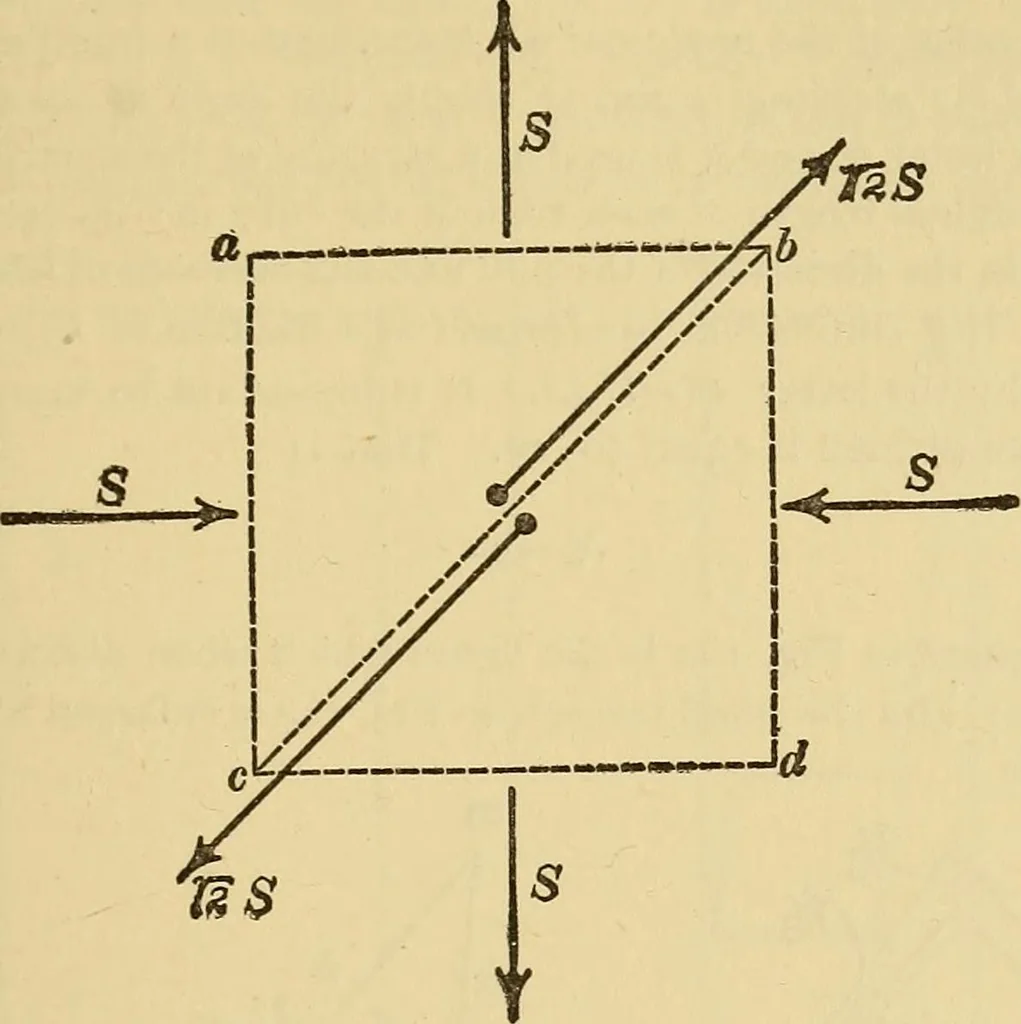

V2 • 5. Therefore, the forceaction across the diagonal plane be is a tangential force action equal to \2 ■ S,which, divided by the area of the diagonal plane be, gives a tangential force actionof 5 units of force per unit of area. ELASTICITY. (STATICS.) 209 It can be shown in the same way that the… … Fig. 100. 103. Shearing strain. The effect of the prescribed stress in Fig. 99 is to shortenthe cube in the direction of the push and to lengthen the cube by an equal amount 1— A ■ ! 1 / \ l\ / !. \ / i \ / ! 11Fig. 101. 5 2IO ELEMENTS OF MECHANICS. in the direction of the pull, without changing…
