Mechanics and heat; a text book for collleges and technical schools (1916)
Franklin, William S. (William Suddards), 1863-1930, Macnutt, Barry, 1878-1936, [from old catalog] joint author · New York, The Macmillan company; London, Macmillan & co., ltd. · leaf 82

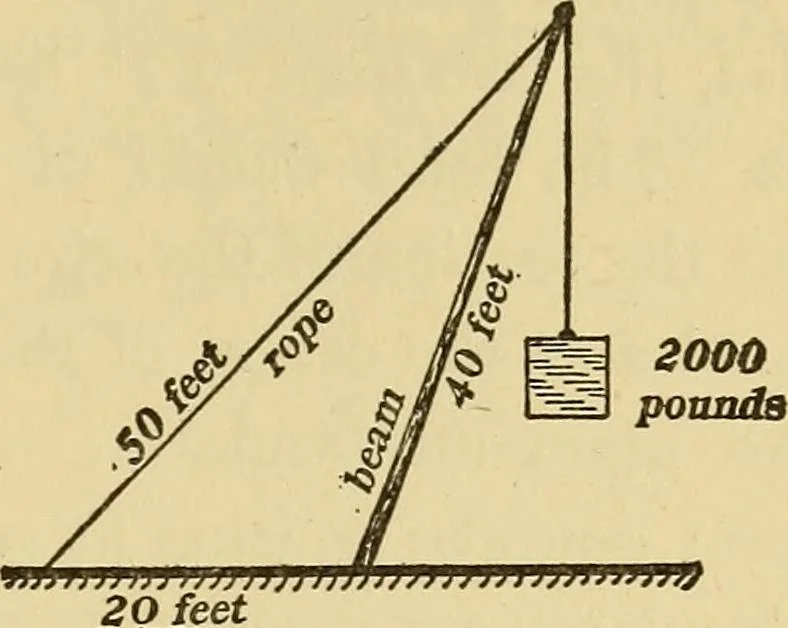

Fig. 35P- Fig. 36^. thrust of the beam. Ans. Tension in rope 1645 pounds. Com-pression in beam 3420 pounds. 37. The two links of a toggle joint are each 10 inches long be-tween centers of end pins, and the center of the middle pin P
Mechanics · Heat
