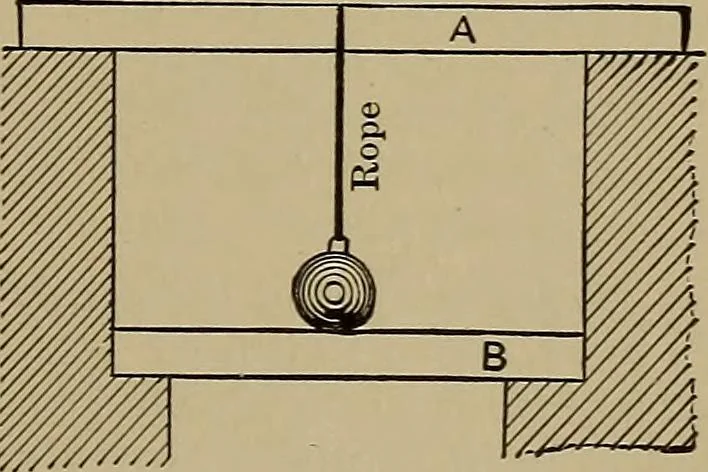

fect toward breaking the beam than ifapplied slowly. For instance, imagine a load having its wholeweight hanging on a rope, like Fig. 37, just touching the beambut not actually resting upon it.If that rope was cut off suddenlythis load would produce twice asmuch effect toward breaking thebeam and… … To Find a Suitable Size of Beam for a Given Limit ofDeflection. For a square beam supported under both ends and loadedat the center, use the formula: 264 STRENGTH OF MATERIALS. Side of the beam — ^L* P c A round beam supported under both ends and loaded at thecenter may be calculated by the…
