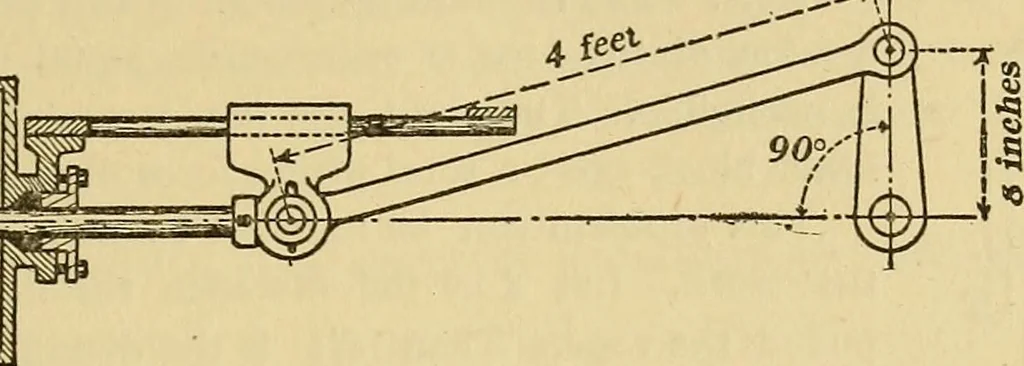

s-head pushes sidewise againstthe guide, the thrust of the connecting rod, and the torque inpound-feet exerted on the crank-shaft, neglecting friction through-out. Ans. Side-thrust 1257 pounds; thrust in connecting rod12065 pounds; torque 5000 pound-feet. SIMPLE STATICS. 71 45. A ladder 16 feet… … Fig. 44P. the ladder rests, as shown in Fig. 45^. Assuming the force awith which the wall pushes on the ladder to be horizontal, findthe magnitude of a and the direction and magnitude of theforce with which the ladder pushes against the floor. Ans.Force a 11.2 pounds; 840 with floor; 100.6 pounds.…
