Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 223

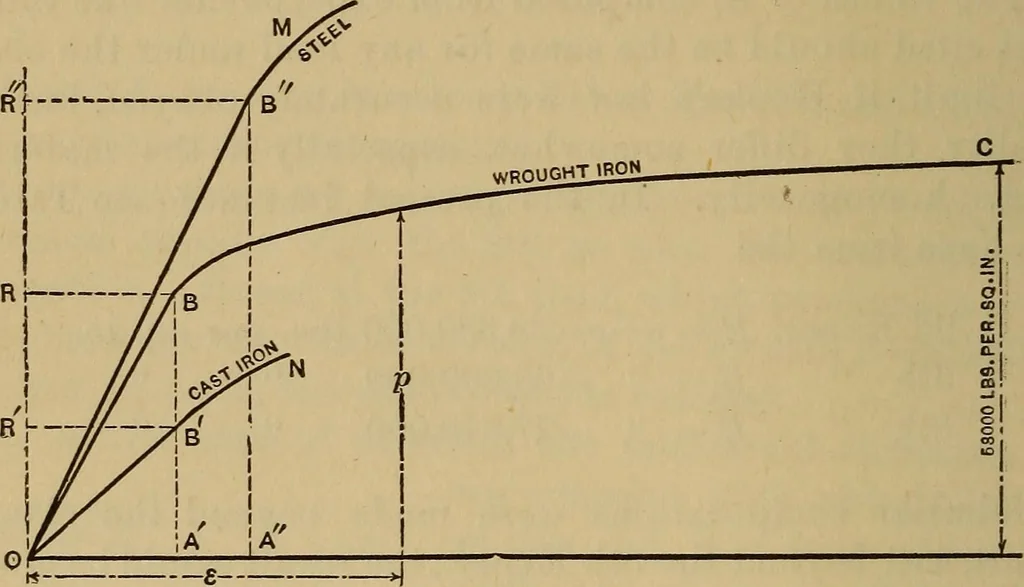

es. Fig. 200 shows two other curves, rep-resenting (roughly) the average behavior of steel and castiron. At the respective elastic limits Bf B, and B, it willbe noticed that the curve for wrought iron makes a suddenturn from the vertical, while those of the others curve awaymore gradually; that the… … Fig. 200. dicate the tensile stress at the elastic limit. These latterquantities will be called the moduli of tenacity at elasticlimit for the respective materials. [On a true scale thepoint G would be much further to the right than hereshown. Only one half of the curve for steel is given, forwant…
Mechanics, Applied · Engineering · Strength of materials
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
