Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 562

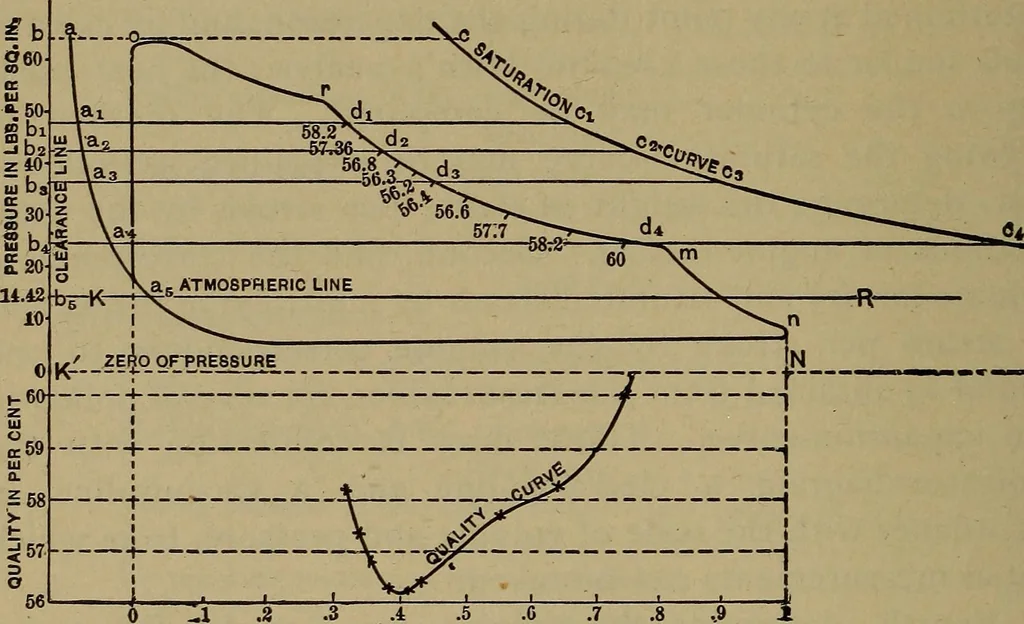

rom the compression-curve for saturatedsteam horizontal distance corresponding to the volume of dryand saturated steam at different pressures, obtained as ex-plained above. Through the various points so determineddraw a curve; such a curve will be the saturation-curve. To obtain the quality of the… … A .5 .0 %QfSTROKE Fig. 226a. quality at d^ is equal to b^djb^c^—that is, the quality is theratio of the actual volume of the steam to that of dry andsaturated steam, and this is true provided the volume occupiedby the condensed steam, which is exceedingly small in everycase, is neglected. The…
Building materials · Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
