Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 331

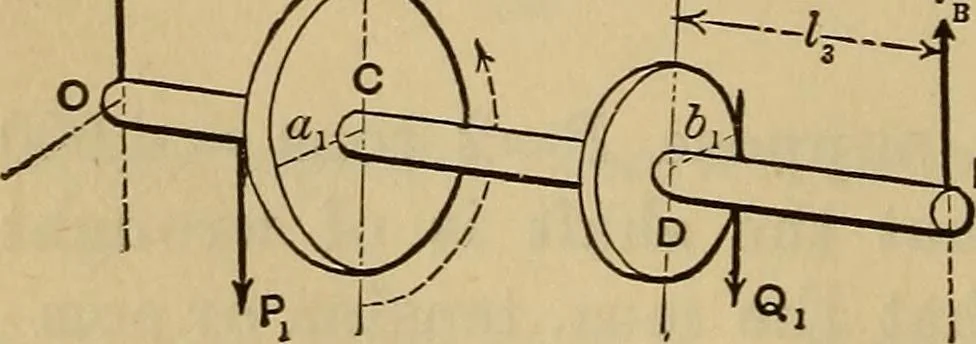

that the crank-pin is in such a position(when P= 4,000 lbs., and a=6 in.) that q max. (and q9max.) are greater than for any other position ; a numberof trials may be necessary to decide this, since P and a aredifferent with each new position of the connecting rod. Ifthe shaft and its connections… … Fig. 274. B expended in overcoming theresistance (another verticalcog-pressure) Qx. That is, the rigid bodyconsisting of the two wheels and shaft is employed totransmit power, at a uniform angular velocity, and sinceit is symmetrical about its axis of rotation the iorces act-ing on it, considered…
Mechanics, Applied · Engineering · Strength of materials
