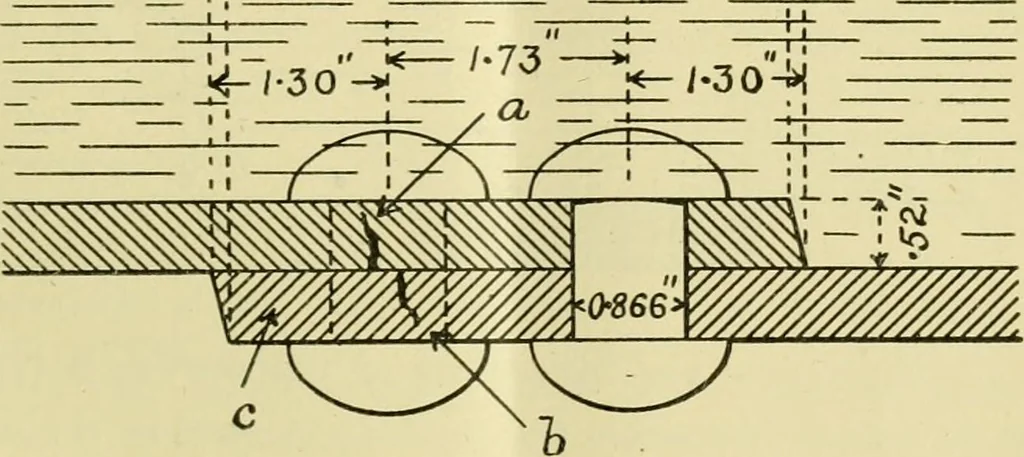

cracks, like a, running circumferentially in the inner plate-ring, alongthe inner row of rivets thereof, and starting from the outer surface of the plate; Second, cracks, like b, also running circumferentially, but lying in the outerplate-ring, along the outer rivet-row thereof, and starting from… … Fig. 3.— Diagram of the Affected Girth Joint. The cracks shown at a and b did not actually perforate the plate, but thecracks c ran through it from one surface to the other. The heavy calking markslhat are to be seen in the illustrations were not produced in the shop of themanufacturer, but were…
