Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 338

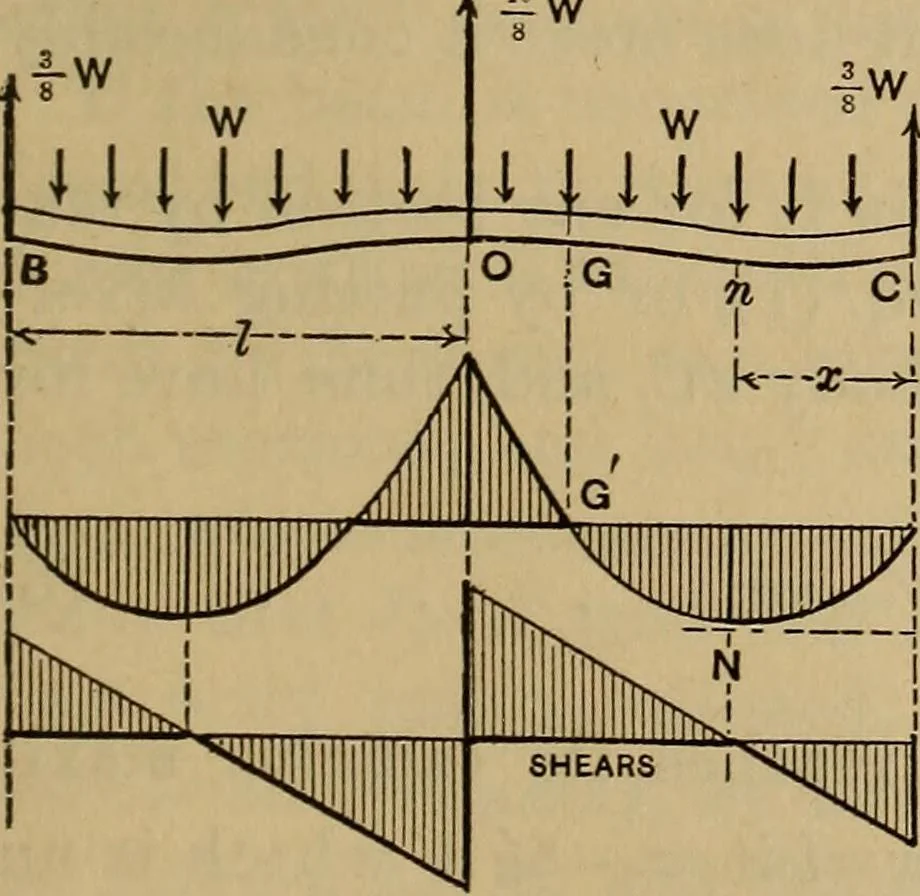

iPj?.-. pc=3/8id=y8w .-.p, ^TFandP0=2JF— 2PC- ? JF The Moment and Shear Diagrams can now be formed since all the external forces arew known. In Fig. 279 meas-ure x from G. Then in anysection n the moment of thestress-couple is … M=y8Wx- wx2 2 (1) which holds good for anyvalue of x on CO, i.e., fromx=0 up to x=l. By inspec-pig. 279. tion it is seen that for x=0, M=0; and also for x=ffl, M=0, at the inflection point G,beyond which, toward 0, the upper fibres are in tension 326 MECHANICS OF ENGINEERING. the lower in…
Mechanics, Applied · Engineering · Strength of materials
