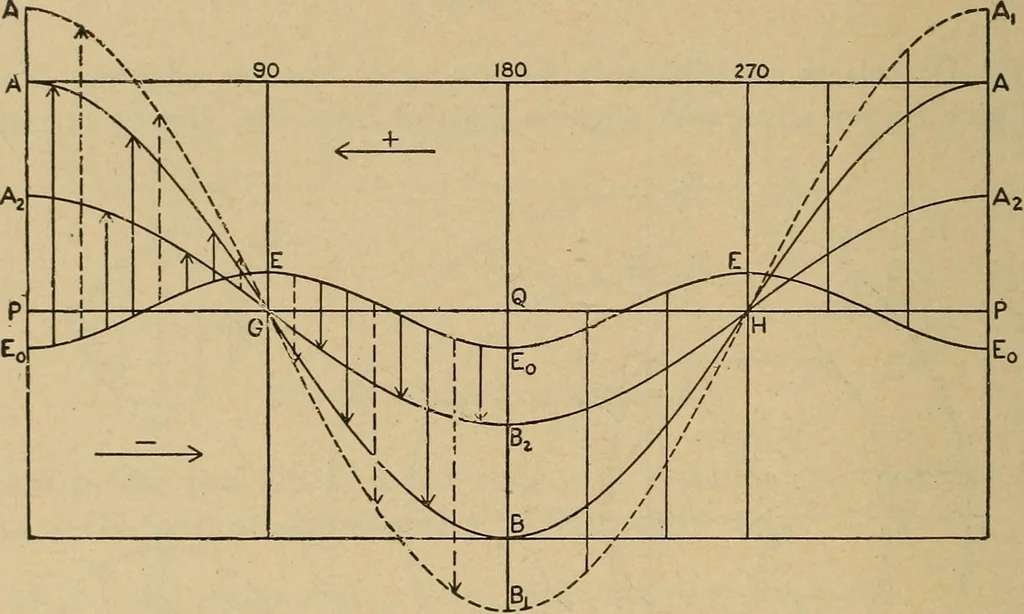

O is well called the dead counterbalance:and the excess of Fs over F2 is then the free counterforce. Similar diagrams for the vertical shaking force >Svare given at IIand III. In the first, for no counterweight at all, the minus sign isneutralized by that of Fb, and the angle scale has its zero… … Fig. 192. — Shaking-force Curves. Diagrams on the developed crank circle are shown in Fig. 192.Here the first term of Eq. (194), {Fo — Fb) cos a, is laid off from thebase PQP in one direction, in a simple sine curve for each value of TD (Fo — Fb); and the second term, y Fo cos 2a, is measured from…
