Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 359

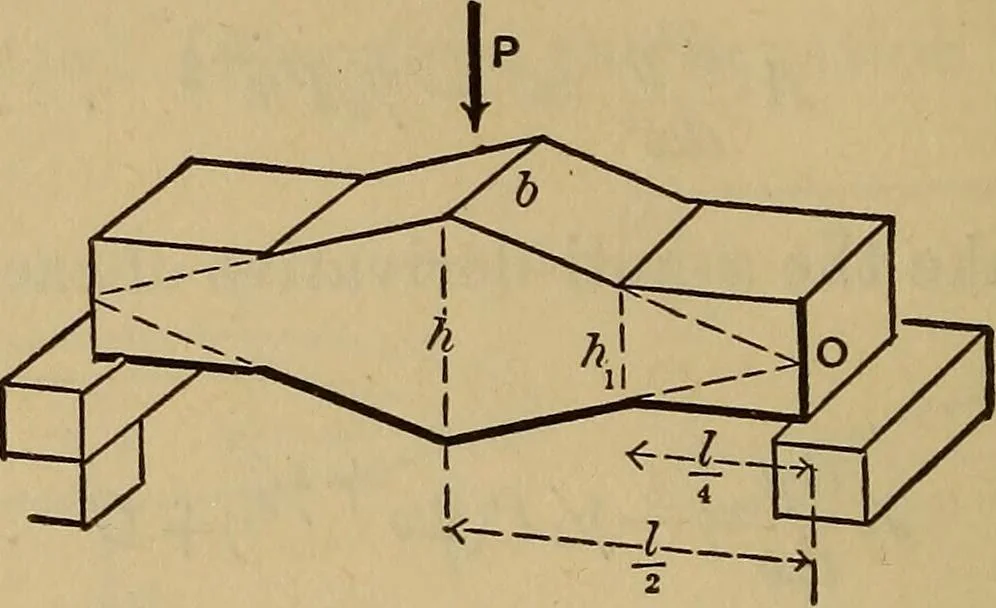

ing I =~ bh in eq. (4). were parallelopipedical. In other words, the present girderis only half as stiff as the prismatic one. 292. Special Problem. (I.) The symmetrical beam in Fig.294 is of rectangular cross-section and constant width = 5, 346 MECHANICS OF ENGINEERING. but the height is constant… … Fig. 294. of the upper and lower surfaces would meet over the supports(as should be the case to make A=2^). Neglecting theweight of the beam, and placing a single load in middle, itis required to find the equation for safe loading; also theequations of the four elastic curves; and finally the…
Mechanics, Applied · Engineering · Strength of materials
