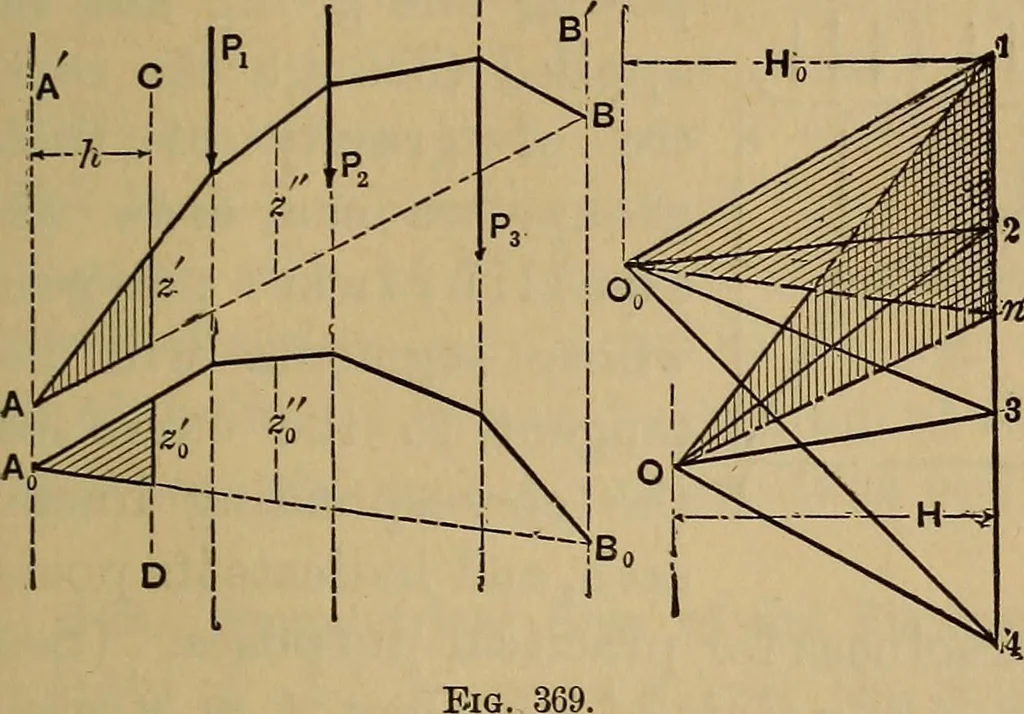

heir corresponding equil. polygons, forthe same loads and verticals. From § 337 we know thatOn is || to AB and 00n is || to A0B0. Let CD be any ver-tical cutting the first segments of the two equil. polygons. GRAPHICAL STATICS. 417 Denote the intercepts thus determined by z and zot respect-ively.… … the proportions between j In z bases and altitudes =— and In h ) { H h H0 .. z : z0 : : H0 : H. The same kind of proof may easily be applied to the vertical intercepts in any other segments,e. g., z and z0. Q. E. D. 339. Corollaries to the foregoing. It is evident that:(1.) If the pole of the…
