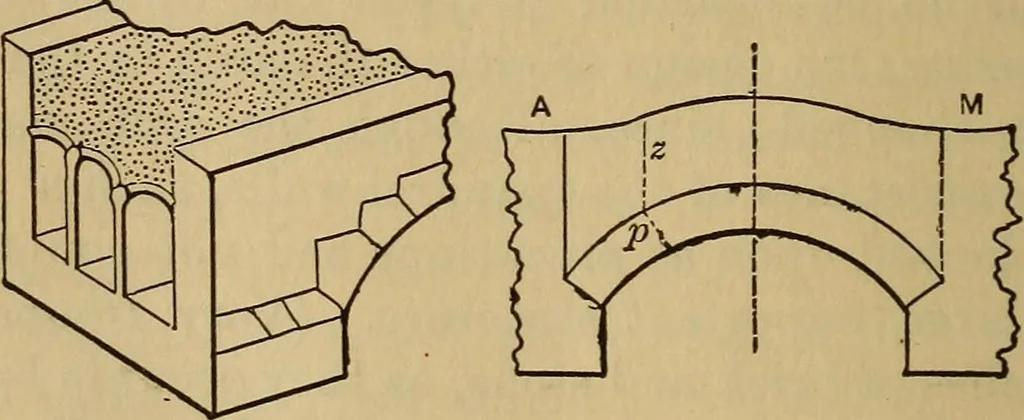

Fig. 384. Fig. 385. ellipse, a compactly-built masonry backing is carried upbeyond the springing-line to AB about 60° to 45° from thecrown, Fig. 385; so that the portion of arch ring belowAB may be considered as part of the abutment, and thusAB is the virtual springing-line, for graphic treatment.… … Fig. 386. Fig. 387. it is customary to consider that, on account of the bond-ing of the stones in the arch shell, the loading at a givendistance from the crown is uniformly distributed over thewidth of the roadway. ARCHES OF MASONRY. 429 354. Reduced Load-Contour.—In the graphical discussionof a…
