Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 480

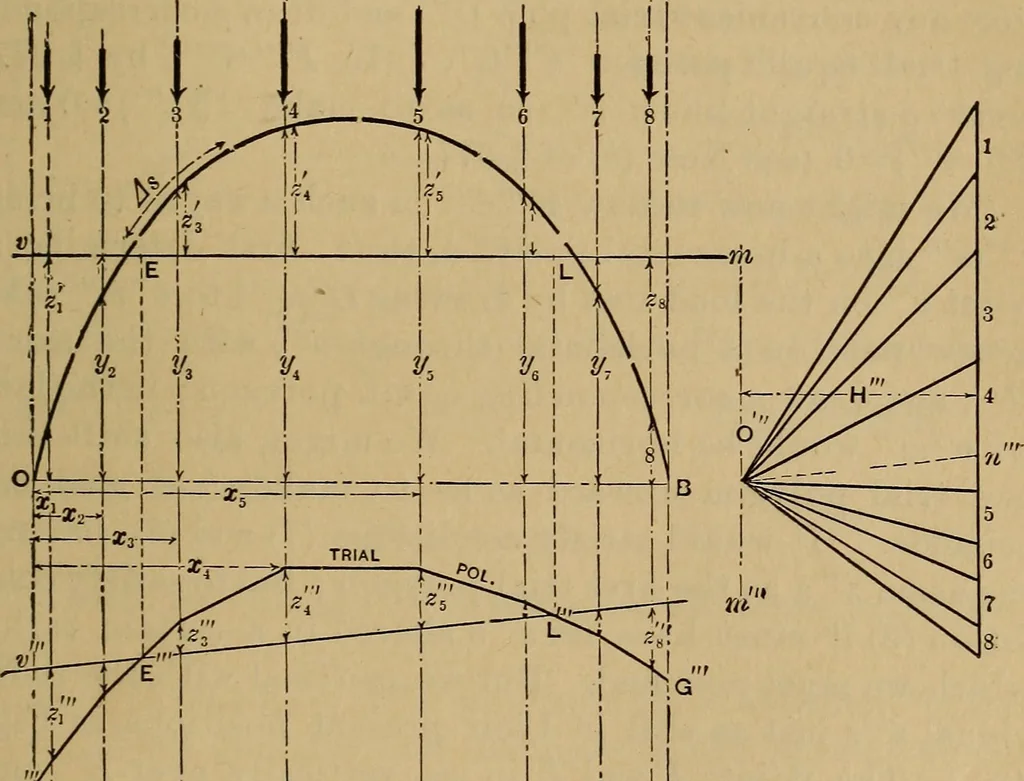

the properratio (and thus change the ss in the inverse ratio) neces-sary to make these sums equal and thus satisfy condition(9). The alteration of the ss, all in the same ratio, will AKCH-HLBS. 467 not interfere with conditions (7) and (8) which are alreadysatisfied. 381. Detail of Construction of… … Ty=fc5tM=i4. Fig. 430. scale is much exaggerated for the sake of distinctness*.Divide into eight equal dss. (In an actual example sixteenor twenty should be taken.) Draw a vertical through the * Each arch-rib of the St. Louis bridge is a built up or trussed rib of steel about 520ft. span and 52 ft…
Mechanics, Applied · Engineering · Strength of materials
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
