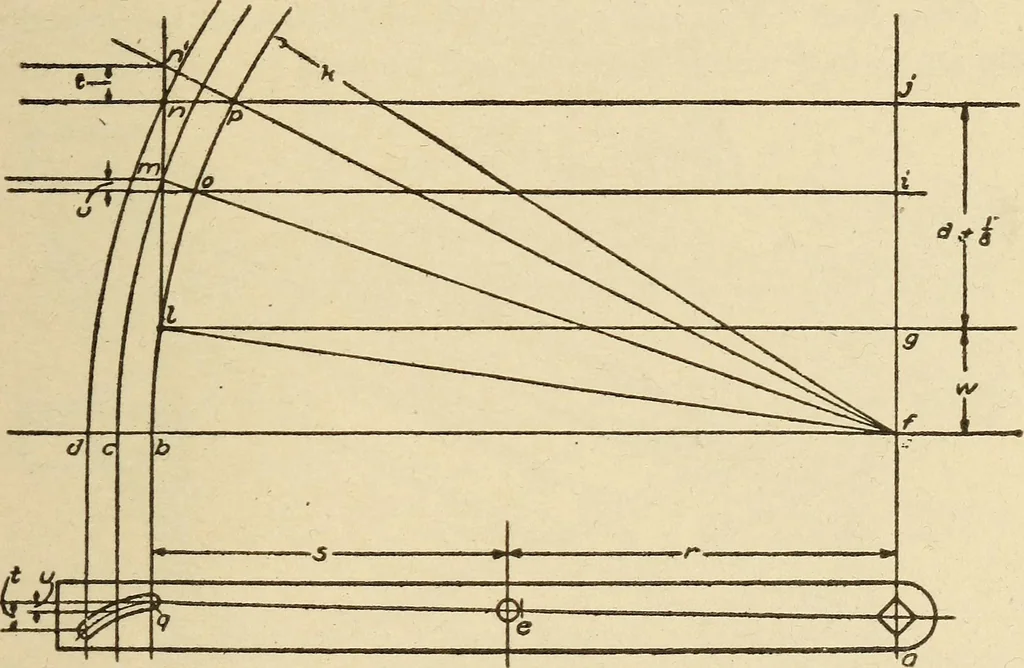

inches long by I inch,and the length 1 or 2 inches less than the length of the draw board*Make a full-size layout of the motion of the parallel device aa … Fig. 305. Layout for Side Arm of Parallftl Motion Device illustrated in Fig. 305. The radius r and the dimension s must bethe same. Side Arms, From points a, e, and q, project vertical linesaj and qb. Make all straight lines with a knife point. With /for a center, scribe arc blop with radius Jc,…
