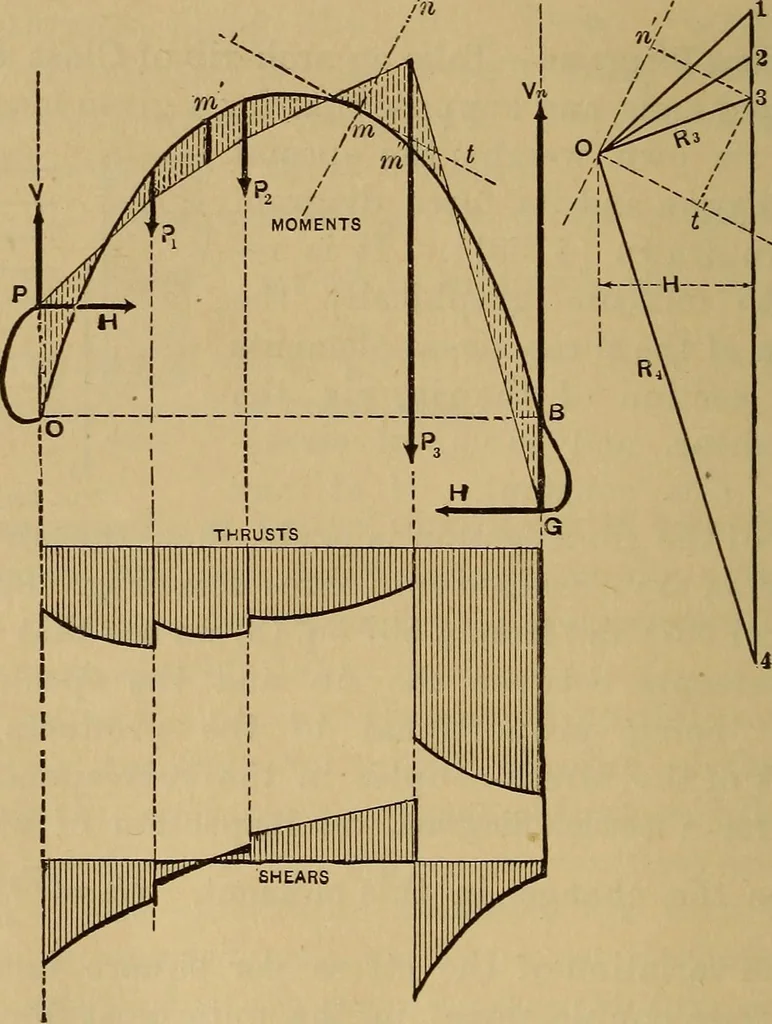

tj MECHANICS OF ENGINEERING. 472 we obtain the values of the thrust and shear for the sec-tion at m. When found in this way for a number of pointsalong the rib their values may be laid off as vertical linesfrom a horizontal axis, in the verticals containing the re-spective points, and thus a thrust… … Fig. 433. suddenly, according as the max. or mm. occurs betweentwo loads or in passing a load; see m, e. g. Also it is evident, from the geometrical relations involv-ed, that at those points of the rib where the tangent-lineis parallel to the proper ray of the force diagram, thethrust is a maximum…
