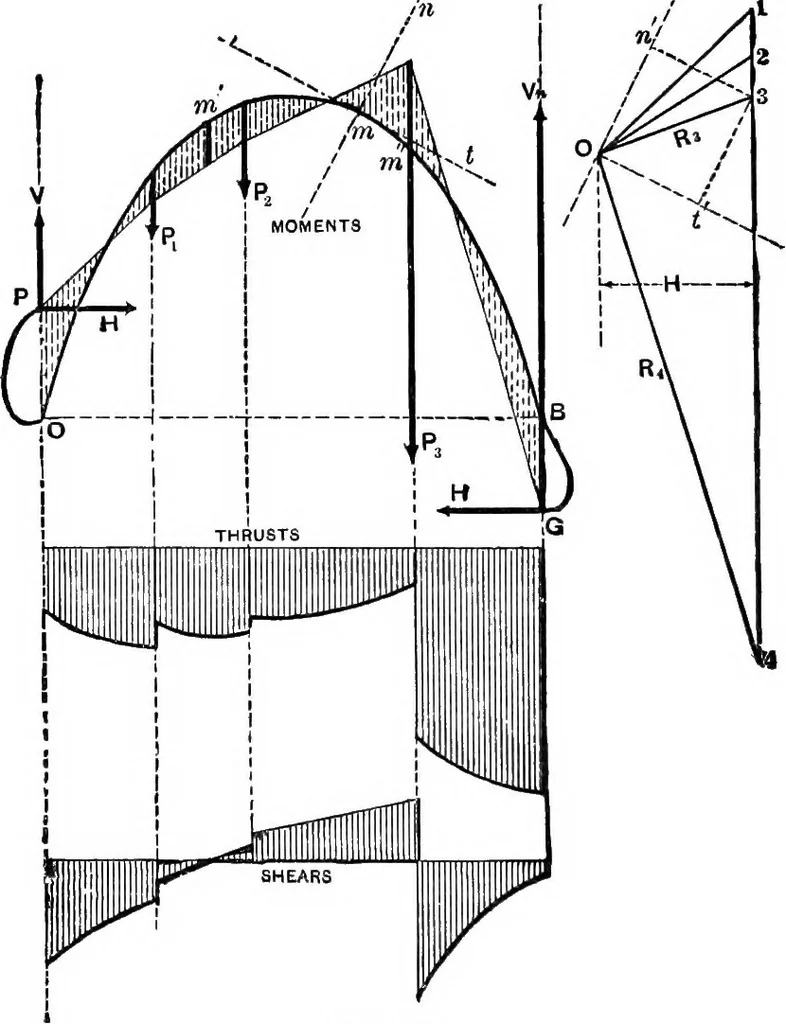

J 472 MECHANICS OF ENGINEEBING. we obtain the values of the thrust and shear for the section at m. When found in this way for a number of pointsalong the rib their values may be laid off as vertical linesfrom a horizontal axis, in the verticals containing the re-spective points, and thus a thrust… … yia. 433. suddenly, according as the max. or min. occurs between two loads or in passing a load ; see m, e. g. Also it is evident, from the geometrical relations involv-ed, that at those points of the rib where the tangent-lineis parallel to the proper ray of the force diagram, thethrust is a…
