Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 507

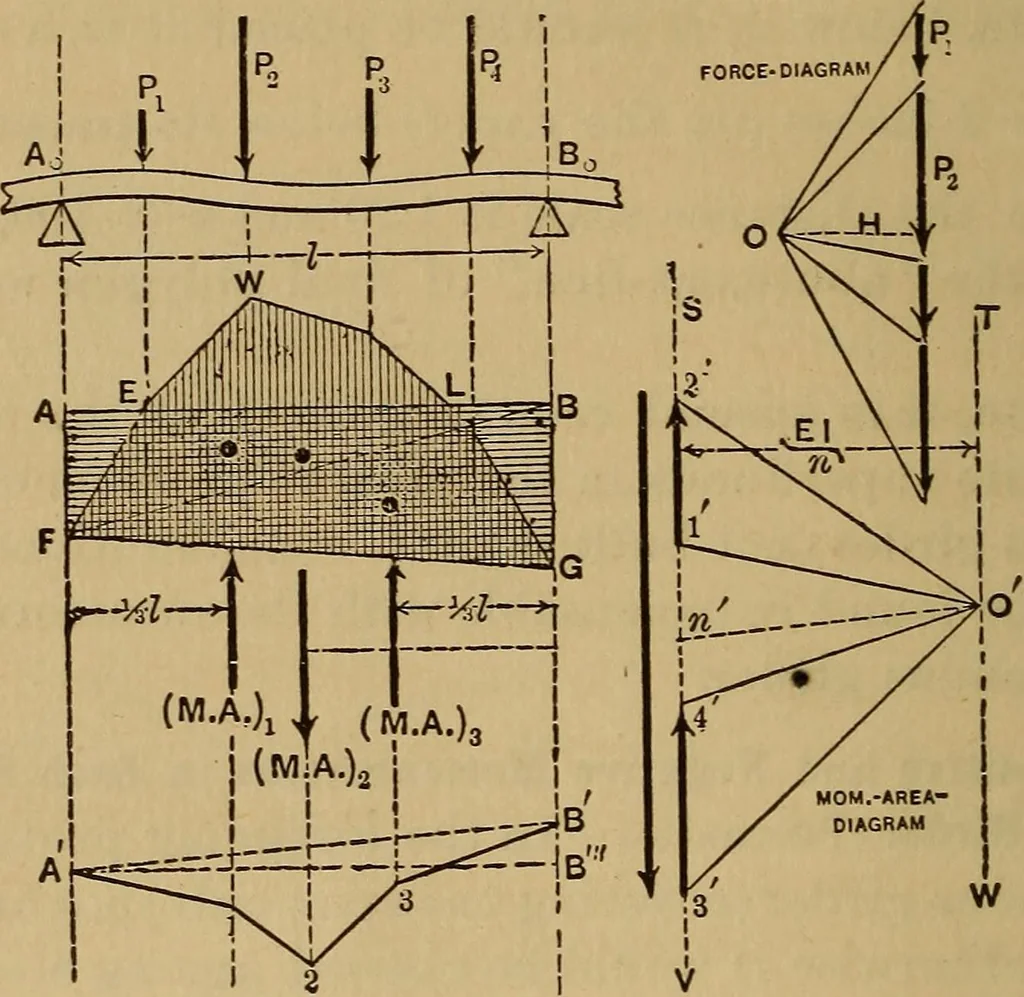

s constant),between two consecutive supports A0 and B0. P^ P2, etc.,are the loads on the span. [If the displacement of An relatively to the end-tangent.at B0, and the angle between the end-tangents (of elastic 494 MECHANICS OF ENGINEERING. curve) were known, the. moment-curve or equilibriumpolygon… … Fig. 445. We now suppose, for the sake of discussion, that thewhole girder has been investigated (by a process to bepresented) for the given loads, spans, positions of supports,etc., and then the moment-curve FEWLG found, with thecorresponding force-diagram, for the span in the figureand some…
Mechanics, Applied · Engineering · Strength of materials
