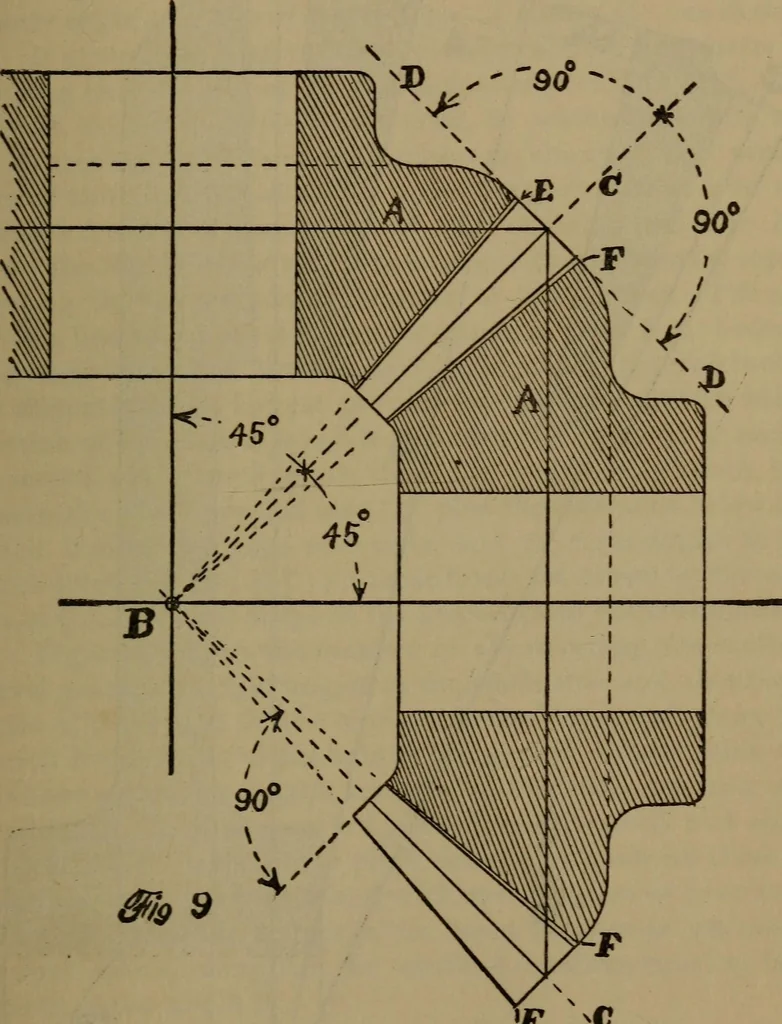

ines (C) are the pitch linesof the teeth; at right angles to the lines C B, draw E F, thelength of which depends on the pitch of the gear; if 4 pitch,draw one-fourth of an inch on the outside and one-fourth plusthe clearance on the inside. The clearance on bevel gears of allkinds is the same depth… … te ^ 134 THE MACHINIST AND TOOL MAKERS INSTRUCTOR. y=o
