Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 515

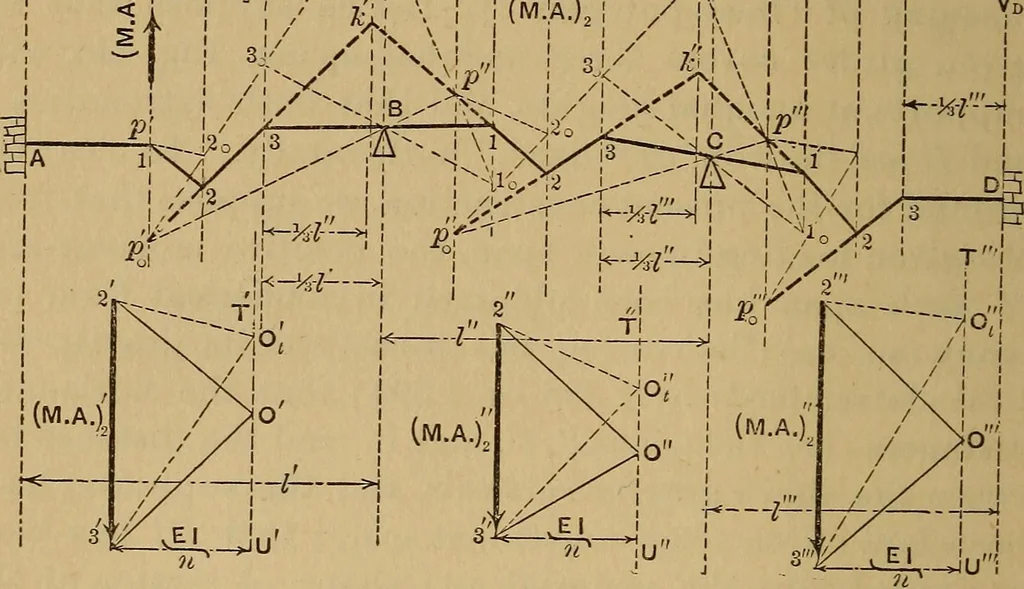

alue of EI and nf 502 MECHANICS OF EKGLNEEKING. the fact that the girder is fixed horizontally at A and D, theheights of supports, the loca Hon of the gravity-verticals of allthe positive and negative moment-areas, and the amounts of thepositive moment-areas ; it is required to find graphically… … Fig. 448. for the purpose of discussing their properties at the out-set. Since SB and Bl are both tangent to the elastic curveat B, they form a single straight line; similarly (71 is butthe prolongation of 3(7. Also Al and 3D must be hori-zontal since the beam is built in horizontally at its…
Mechanics, Applied · Engineering · Strength of materials
